9DBV0631BKILFT - Renesas Electronics

Description: The 9DBV0631 is a member of IDT's 1.8V Very-Low-Power (VLP) PCIe family. The device has 6 output enables for clock management and 3 selectable SMBus addresses.

Download 9DBV0631BKILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

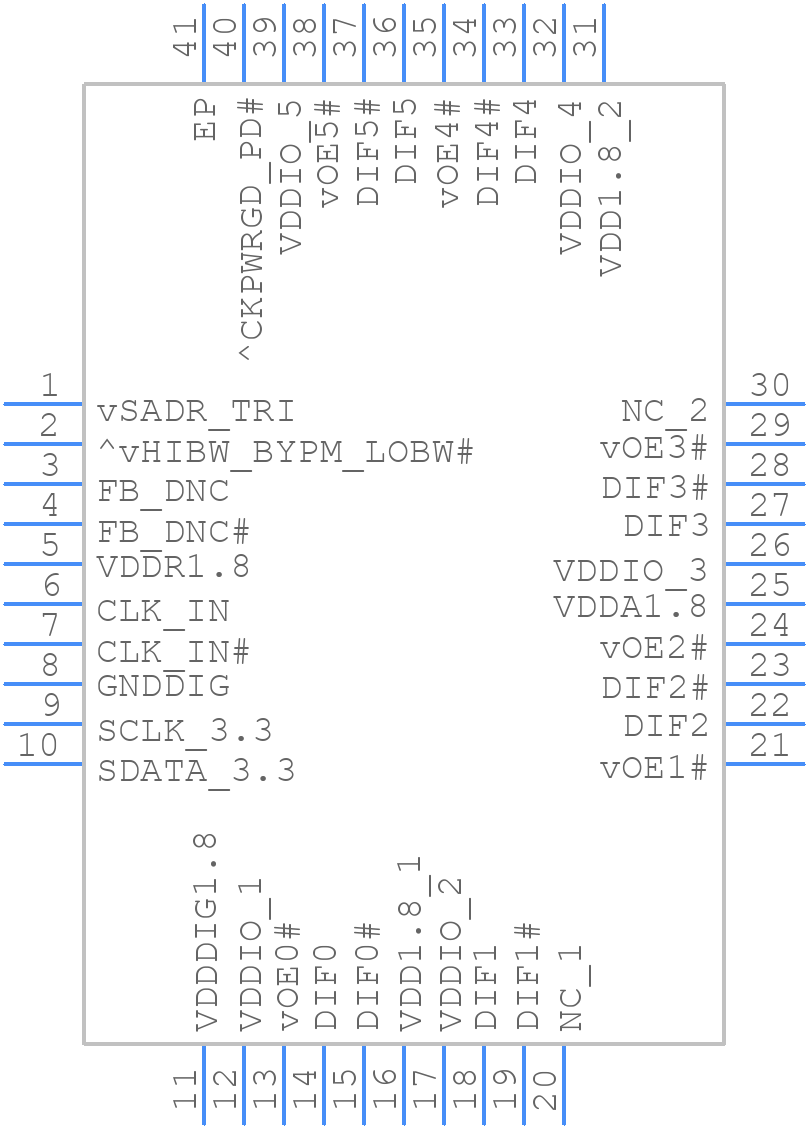

Symbol
9DBV0631BKILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9DBV0631BKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NDG40P2-
click to zoom
3D Models
9DBV0631BKILFT - Renesas Electronics - 3D model - Quad Flat No-Lead - NDG40P2-
click to zoom

9DBV0631BKILFT Details

  • Manufacturer Part Number:

    9DBV0631BKILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    40

  • Manufacturer Package Code:

    NDG40P2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    9DBV

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

9DBV0631BKILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
  • Renesas offers application-specific documentation, such as user manuals and design guides, that provide configuration and implementation details for various use cases. Additionally, Renesas' support teams and FAEs can provide guidance on custom configurations.
  • The 9DBV0631BKILFT has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as heat sinks, thermal interfaces, and airflow management. Renesas provides thermal design guidelines and recommendations in their documentation.
  • While the 9DBV0631BKILFT is a high-reliability device, it's not specifically designed for radiation-hardened applications. Renesas offers other products that are designed for high-reliability and radiation-hardened applications. It's essential to consult with Renesas' support teams to determine the best device for such applications.
  • Renesas provides debugging tools, such as the Renesas Debug Tool, and documentation, like the 9DBV0631BKILFT user manual, to help troubleshoot issues. Additionally, Renesas' support teams and FAEs can provide guidance on debugging and fault detection techniques.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9DBV0631BKILFT Overview

Use the download button to access the 9DBV0631BKILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9DBV0, or try a keyword search, such as Clock Drivers
