Description:The 9DBV0641 is a member of IDT's 1.8 V Very-Low-Power (VLP) PCIe family. It has integrated output terminations providing Zo=100 ohms for direct connection to 100 ohm transmission lines. The device has 6 output enables for clock management and 3 selectable SMBus addresses.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and evaluation board documentation. It's essential to follow these guidelines to ensure proper signal integrity, power supply decoupling, and thermal management.
Renesas recommends using an external POR circuit with a voltage supervisor IC (e.g., Renesas' RP108 series) to ensure a reliable power-on reset. The datasheet provides guidelines for POR timing and voltage thresholds.
The 9DBV0641AKILFT has a thermal junction-to-case rating of 2°C/W. To ensure proper thermal management, use a heat sink, follow Renesas' thermal design guidelines, and consider using thermal interface materials (TIMs) to reduce thermal resistance.
Renesas provides clock tree optimization guidelines in their application notes (e.g., AN9834). Key considerations include using a low-jitter clock source, minimizing clock tree length, and using clock buffers to reduce skew.
Renesas recommends following their EMI and EMC guidelines (e.g., AN9834) to minimize electromagnetic interference and ensure electromagnetic compatibility. This includes using proper shielding, filtering, and layout techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9DBV0641AKILFT Overview

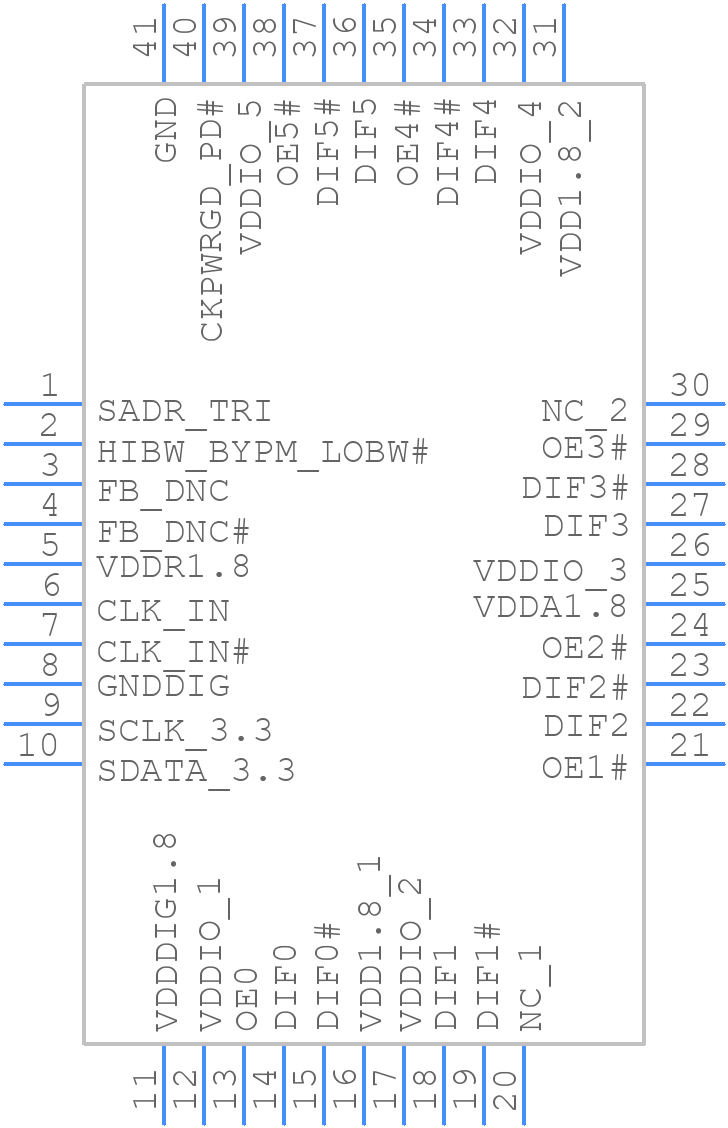

Use the download button to access the 9DBV0641AKILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9DBV0,
or try a keyword search, such as Clock Drivers
