9DBV0841AKLF - Renesas Electronics

Description: The 9DBV0841 is a 1.8V member of Renesas' full featured PCIe family.  It has integrated output terminations providing Zo = 100Ω for direct connection for 100Ω transmission lines. The device has 8 output enables for clock management and 3 selectable SMBus addresses.

Download 9DBV0841AKLF Model

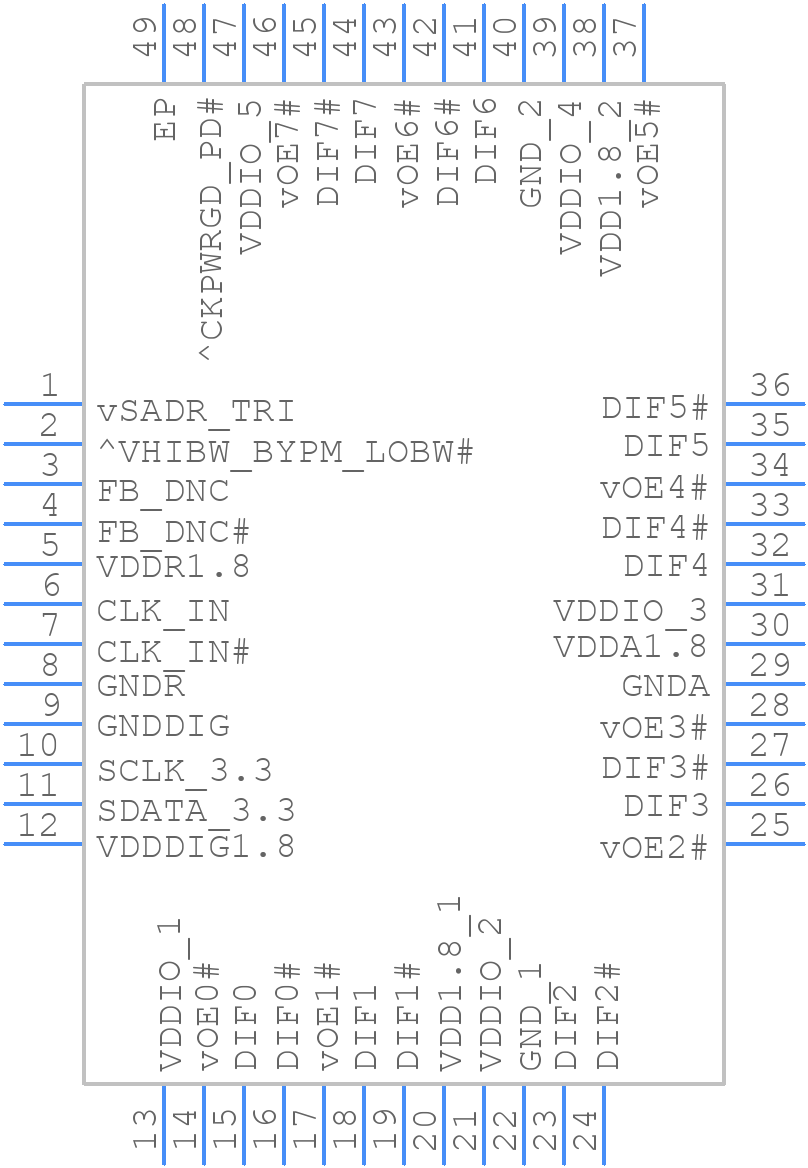

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBV0841AKLF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-VFQFPN Package Outline Drawing
click to zoom
3D Models
9DBV0841AKLF - Renesas Electronics  - 3D model - Quad Flat No-Lead - 48-VFQFPN Package Outline Drawing
click to zoom

9DBV0841AKLF Details

  • Manufacturer Part Number:

    9DBV0841AKLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    48

  • Manufacturer Package Code:

    NDG48P1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Family:

    9DBV

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.002 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

9DBV0841AKLF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • Use a high-quality, low-ESR capacitor (e.g., 0.1uF) as close as possible to the VCC pin, and a 10uF capacitor on the output. Ensure the power supply is stable and within the recommended voltage range.
  • The maximum frequency deviation is ±50 ppm. Exceeding this limit may affect the device's performance and accuracy.
  • Use a power-on reset (POR) circuit to ensure the device is properly reset during power-up. During power-down, ensure the output is properly terminated to prevent oscillations.
  • The recommended operating temperature range is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.
