9DBV0931AKILF - Renesas Electronics

Description: The 9DBV0931 is a member of IDT's Full-Featured PCIe family. The device has 9 output enables for clock management, and 3 selectable SMBus addresses.

Download 9DBV0931AKILF Model

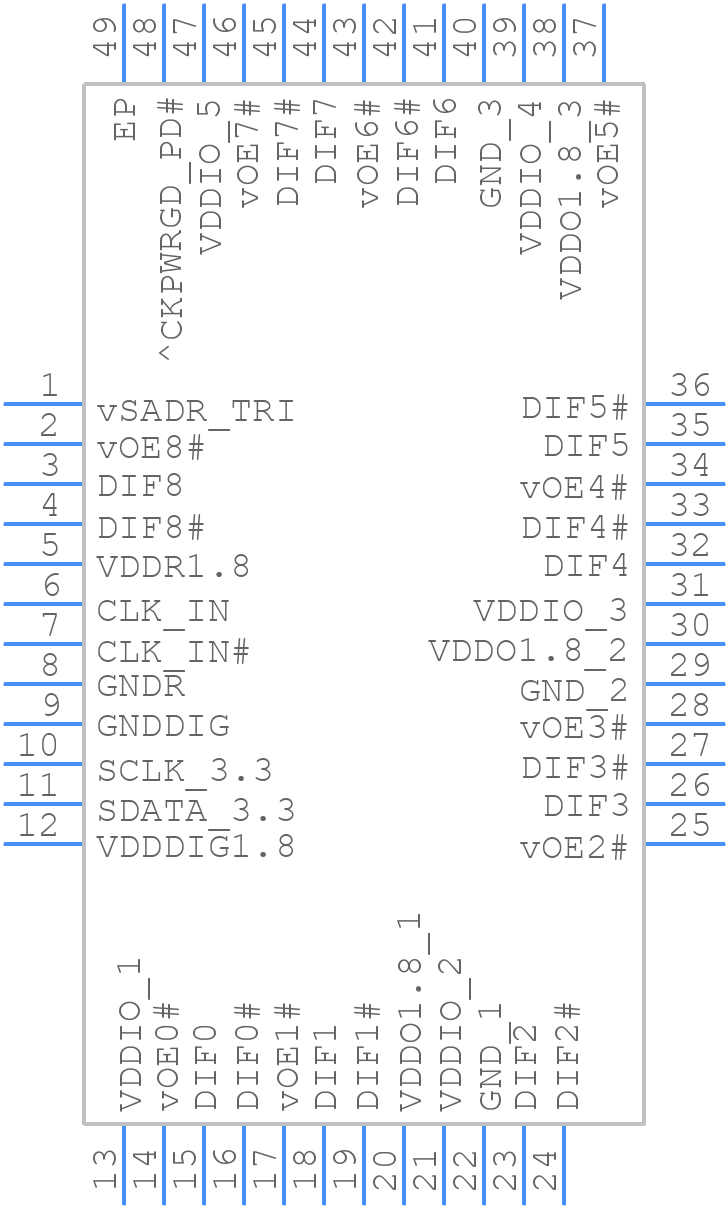

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBV0931AKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NDG48P1_
click to zoom
3D Models
9DBV0931AKILF - Renesas Electronics  - 3D model - Quad Flat No-Lead - NDG48P1_
click to zoom

9DBV0931AKILF Details

  • Manufacturer Part Number:

    9DBV0931AKILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    NDG48P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-02

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

9DBV0931AKILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9831) and evaluation board documentation. It's essential to follow these guidelines to ensure proper signal integrity, power supply decoupling, and thermal management.
  • Renesas recommends using an external power sequencer, such as the ISL91211, to ensure proper power-up and power-down sequencing. Additionally, a reset circuit with a capacitor and resistor can be used to generate a reset signal. Refer to the datasheet and application notes for more information.
  • The 9DBV0931AKILF has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Follow Renesas' thermal design guidelines and consider using thermal simulation tools to optimize the design.
  • The 9DBV0931AKILF can be configured using the SPI interface to set clock frequencies, modes, and other parameters. Refer to the datasheet and programming guides for specific register settings and configuration examples.
  • Renesas recommends following good EMI and EMC design practices, such as using shielding, filtering, and proper PCB layout techniques. Ensure that the 9DBV0931AKILF is placed in a shielded area, and use EMI filters and chokes as necessary to minimize radiation and susceptibility.
