Description:The 9FGL0241/51 devices are 2-output 3.3V PCIe Gen1–5 clock generators. Each output has a dedicated OE# pin supporting PCIe CLKREQ# functionality. Two different spread spectrum levels, in addition to spread off, are supported. The 9FGL0241/51 supports PCIe Gen1–5 Common Clocked architectures (CC), PCIe Separate Reference no-Spread (SRNS) and Separate Reference Independent Spread (SRIS) clocking architectures.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., DG0094). It's essential to follow these guidelines to ensure optimal performance, especially for high-speed signals and power supply decoupling.
Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's datasheet, application notes, or design guides. Typically, the sequence involves powering up the core voltage (VCC) before the input/output voltage (VIO).
The 9FGL0241DKILF has a thermal design power (TDP) of 1.5W. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and follow Renesas' thermal design guidelines (e.g., AN9835). Additionally, consider using thermal interface materials and optimizing the PCB layout for heat dissipation.
The 9FGL0241DKILF has a complex clocking system. Renesas provides detailed information on clock configuration, PLL settings, and clock domain crossing in their datasheet, application notes (e.g., AN9833), and design guides (e.g., DG0093). It's essential to carefully follow these guidelines to ensure proper device operation.
Renesas provides information on I/O pin settings, including drive strength, slew rate, and pull-up/pull-down resistors, in their datasheet and application notes (e.g., AN9832). It's crucial to follow these guidelines to ensure proper signal integrity and device operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGL0241DKILF Overview

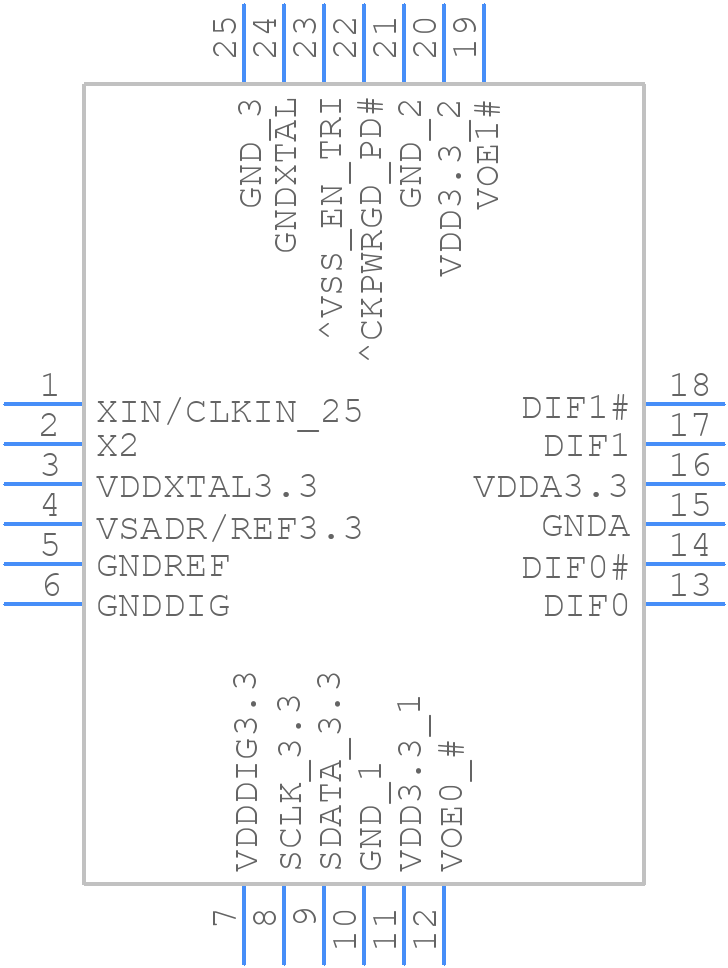

Use the download button to access the 9FGL0241DKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGL0,
or try a keyword search, such as Clock Generators
