9FGL0251DKILF - Renesas Electronics

Description: The 9FGL0241/51 devices are 2-output 3.3V PCIe Gen1–5 clock generators. Each output has a dedicated OE# pin supporting PCIe CLKREQ# functionality. Two different spread spectrum levels, in addition to spread off, are supported. The 9FGL0241/51 supports PCIe Gen1–5 Common Clocked architectures (CC), PCIe Separate Reference no-Spread (SRNS) and Separate Reference Independent Spread (SRIS) clocking architectures.

Download 9FGL0251DKILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

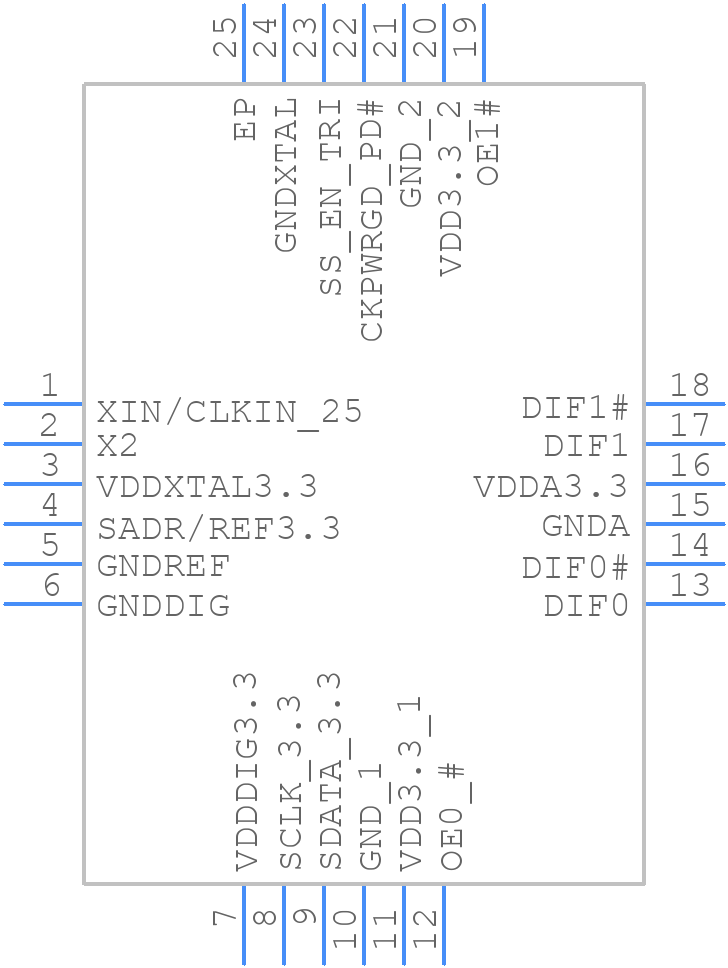

9FGL0251DKILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9FGL0251DKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 9FGL0251DKILF
click to zoom
3D Models
9FGL0251DKILF - Renesas Electronics - 3D model - Quad Flat No-Lead - 9FGL0251DKILF
click to zoom

9FGL0251DKILF Details

  • Manufacturer Part Number:

    9FGL0251DKILF

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks, 1 Day

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

9FGL0251DKILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3601EJ0100) which includes guidelines for signal integrity, power supply, and thermal management.
  • Renesas recommends a specific power sequencing scheme in their datasheet (section 6.3). It's essential to follow this sequence to ensure proper device operation and prevent damage.
  • The 9FGL0251DKILF has a thermal pad that must be connected to a thermal ground plane on the PCB. Renesas recommends using thermal vias and a heat sink to maintain a junction temperature below 125°C.
  • The 9FGL0251DKILF has multiple low-power modes (e.g., sleep, standby, and shutdown). Refer to the datasheet (section 7.3) for register settings and configuration details to achieve the desired power consumption.
  • Renesas provides EMI and EMC guidelines in their application note (R01AN3601EJ0100). It's essential to follow these guidelines to ensure compliance with regulatory requirements and minimize electromagnetic interference.
