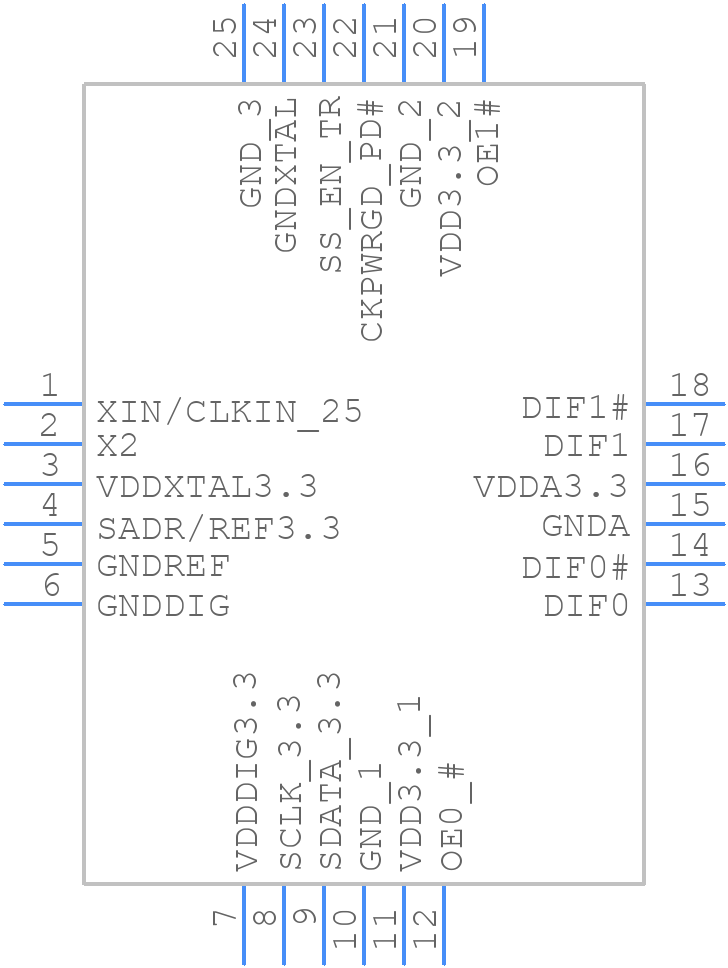

9FGL0251DKILFT - Renesas Electronics

9FGL0251DKILFT Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Renesas provides a recommended PCB layout guide in their application note (R01AN4333EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
• How do I implement power sequencing for the 9FGL0251DKILFT?
  Renesas recommends a specific power sequencing scheme in their application note (R01AN4333EJ0100) to ensure proper device operation. The recommended sequence is: VCC, AVCC, DVCC, and finally, the input clock signal.
• What are the limitations of the internal oscillator, and when should I use an external clock source?
  The internal oscillator has a limited frequency range (up to 25 MHz) and may not provide the required accuracy or stability for certain applications. Renesas recommends using an external clock source for frequencies above 25 MHz or when high accuracy and stability are required.
• How do I handle the JTAG interface during device reset or power-on?
  During device reset or power-on, the JTAG interface should be held in a high-impedance state to prevent unwanted device behavior. Renesas recommends using a JTAG interface controller or a reset circuit to manage the JTAG signals during these events.
• What are the specific requirements for the input clock signal, and how do I ensure clock signal integrity?
  The input clock signal should meet the specified frequency, amplitude, and jitter requirements. Renesas recommends using a clock signal with a frequency range of 10 MHz to 50 MHz, an amplitude of 2.5 V to 3.3 V, and a jitter of less than 100 ps. Additionally, clock signal integrity can be ensured by using a clock buffer, such as the Renesas Clock Buffer IC (Renesas part number: R3150), and following proper PCB layout and routing guidelines.
