9FGL0841BKILFT footprint, schematic symbol and 3D model by Renesas Electronics

9FGL0841BKILFT - Renesas Electronics

Description: The 9FGL0841/51 devices are 8-output 3.3V PCIe Gen1–5 clock generators. Each output has a dedicated OE# pin supporting PCIe CLKREQ# functionality. Two different spread spectrum levels, in addition to spread off, are supported. The 9FGL0841/51 supports PCIe Gen1–5 Common Clocked architectures (CC), PCIe Separate Reference no-Spread (SRNS) and Separate Reference Independent Spread (SRIS) clocking architectures. For information regarding evaluation boards and material, please contact your local sales represent

Download 9FGL0841BKILFT Model

Schematic
symbols

PCB
footprints

3D
models

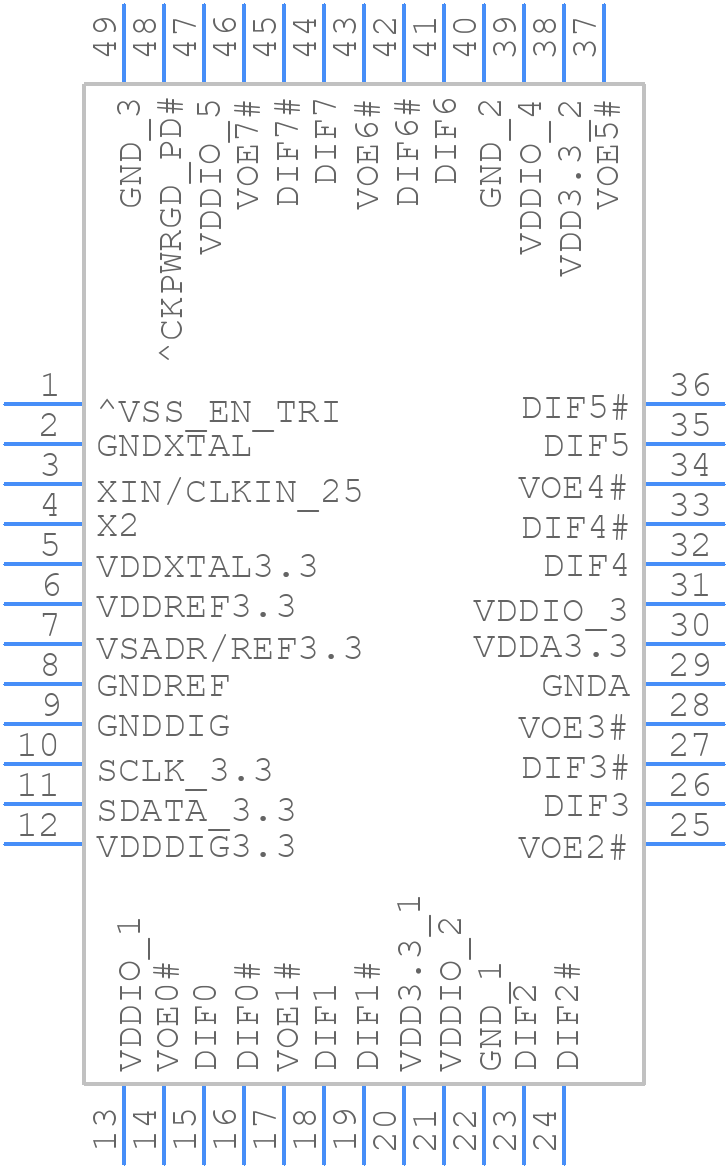

Symbol

click to zoom

PCB Footprints

9FGL0841BKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NDG48P4

click to zoom

3D Models

9FGL0841BKILFT - Renesas Electronics - 3D model - Quad Flat No-Lead - NDG48P4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 9FGL0841BKILFT
Part Number 9FGL0841BKILFT
Manufacturer Renesas Electronics
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - NDG48P4
Released Date Jan 31, 2020
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

9FGL0841BKILFT Details

Manufacturer Part Number:
9FGL0841BKILFT
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

9FGL0841BKILFT Overview

Use the download button to access the 9FGL0841BKILFT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 9FGL0, or try a keyword search, such as Clock Generators
