9FGL0841DKILF - Renesas Electronics

Description: The 9FGL0841/51 devices are 8-output 3.3V PCIe Gen1–5 clock generators. Each output has a dedicated OE# pin supporting PCIe CLKREQ# functionality. Two different spread spectrum levels, in addition to spread off, are supported. The 9FGL0841/51 supports PCIe Gen1–5 Common Clocked architectures (CC), PCIe Separate Reference no-Spread (SRNS) and Separate Reference Independent Spread (SRIS) clocking architectures. For information regarding evaluation boards and material, please contact your local sales represent

Download 9FGL0841DKILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

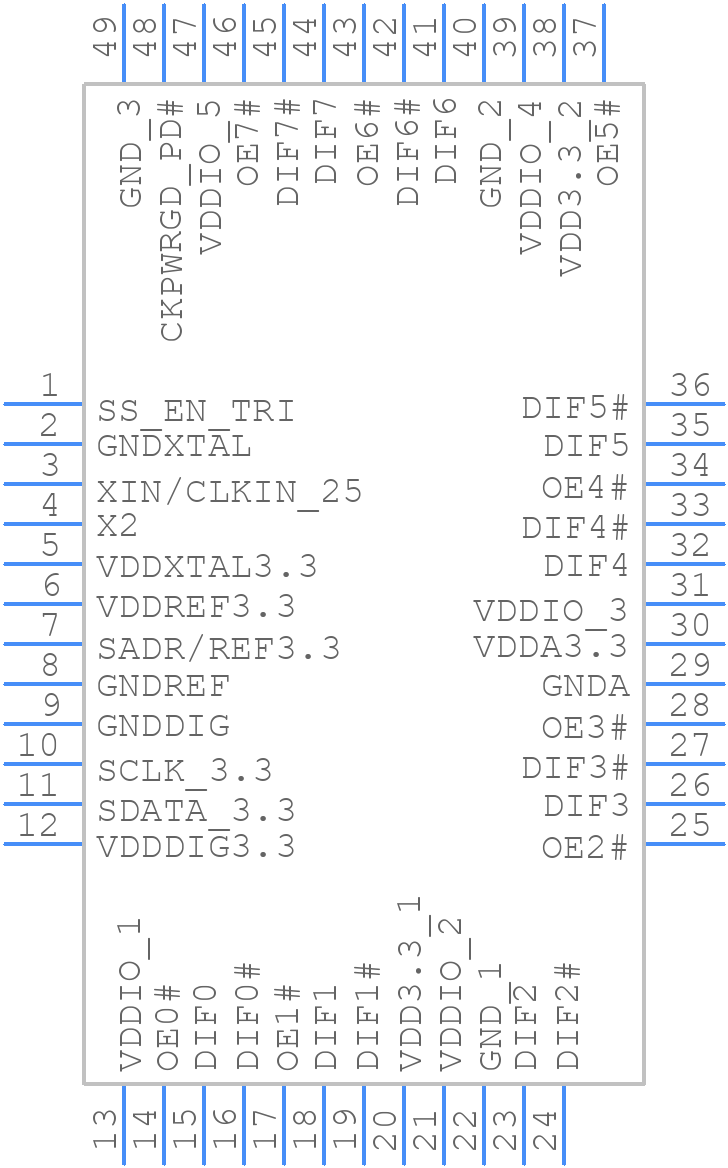

9FGL0841DKILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9FGL0841DKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-VFQFPN 6.0 x 6.0 x 0.9 mm Body, 0.4mm Pitch
click to zoom
3D Models
9FGL0841DKILF - Renesas Electronics - 3D model - Quad Flat No-Lead - 48-VFQFPN 6.0 x 6.0 x 0.9 mm Body, 0.4mm Pitch
click to zoom

9FGL0841DKILF Details

  • Manufacturer Part Number:

    9FGL0841DKILF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    6 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    37 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

9FGL0841DKILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends a specific power sequencing scheme in their application note (R01AN4461EJ0100) to ensure proper device operation. The sequence involves powering up the VCC, then the VCCIO, and finally the VREF pins.
  • Renesas recommends using 0.1uF to 1uF decoupling capacitors with a voltage rating of 1.8V or higher, placed as close as possible to the VCC, VCCIO, and VREF pins.
  • The JTAG interface should be disabled during normal device operation to prevent interference with the device's functionality. This can be done by pulling the TCK pin low or using the JTAG disable pin (if available).
  • The maximum operating frequency for the 9FGL0841DKILF is 800 MHz, but this can vary depending on the specific application and system design. It's recommended to consult the datasheet and application notes for specific frequency limitations.
