9FGL0841DKILFT - Renesas Electronics

Description: The 9FGL0841/51 devices are 8-output 3.3V PCIe Gen1–5 clock generators. Each output has a dedicated OE# pin supporting PCIe CLKREQ# functionality. Two different spread spectrum levels, in addition to spread off, are supported. The 9FGL0841/51 supports PCIe Gen1–5 Common Clocked architectures (CC), PCIe Separate Reference no-Spread (SRNS) and Separate Reference Independent Spread (SRIS) clocking architectures. For information regarding evaluation boards and material, please contact your local sales represent

Download 9FGL0841DKILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

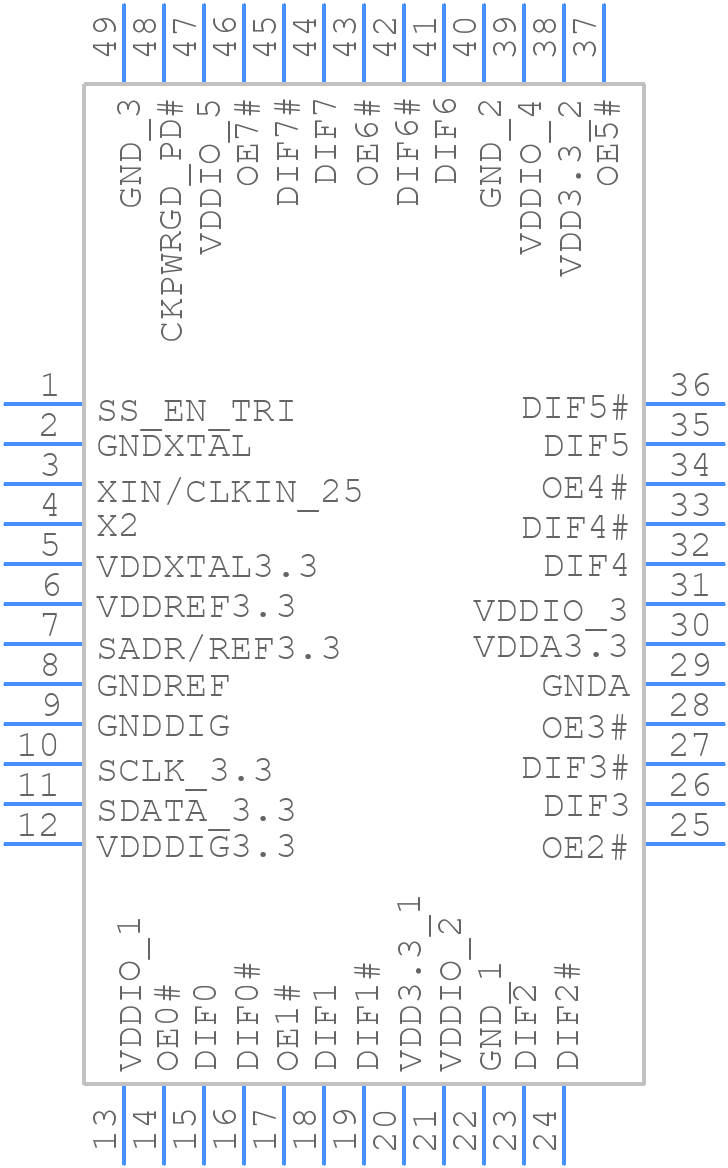

Symbol
9FGL0841DKILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9FGL0841DKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 9FGL0841DKILFT
click to zoom
3D Models
9FGL0841DKILFT - Renesas Electronics - 3D model - Quad Flat No-Lead - 9FGL0841DKILFT
click to zoom

9FGL0841DKILFT Details

  • Manufacturer Part Number:

    9FGL0841DKILFT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    6 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    37 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

9FGL0841DKILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends a specific power sequencing scheme in their application note (R01AN4461EJ0100) to ensure proper device operation. The sequence involves powering up the VCC, then the VDD, and finally the AVCC.
  • Renesas recommends using 0.1uF to 1uF decoupling capacitors with a voltage rating of 10V or higher, placed as close as possible to the power pins. The application note (R01AN4461EJ0100) provides more detailed guidance on decoupling capacitor selection and placement.
  • Renesas provides a JTAG interface specification in their application note (R01AN4461EJ0100) which includes guidelines for testing and debugging. Engineers can use a JTAG adapter and a compatible test software to access the device's internal registers and perform testing.
  • The thermal resistance values for the 9FGL0841DKILFT package are not explicitly stated in the datasheet. However, Renesas provides thermal resistance values for similar packages in their thermal management application note (R01AN4461EJ0100). Engineers can use these values as a reference and consult with Renesas support for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9FGL0841DKILFT Overview

Use the download button to access the 9FGL0841DKILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGL0, or try a keyword search, such as Clock Generators
