9FGV0231AKLF - Renesas Electronics

Description: The 9FGV0231 is a 2-output very low power clock generator for PCIe Gen1–4 Common Clocked (CC) applications. The device has 2 output enables for clock management and supports 2 different spread spectrum levels in addition to spread off.

Download 9FGV0231AKLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

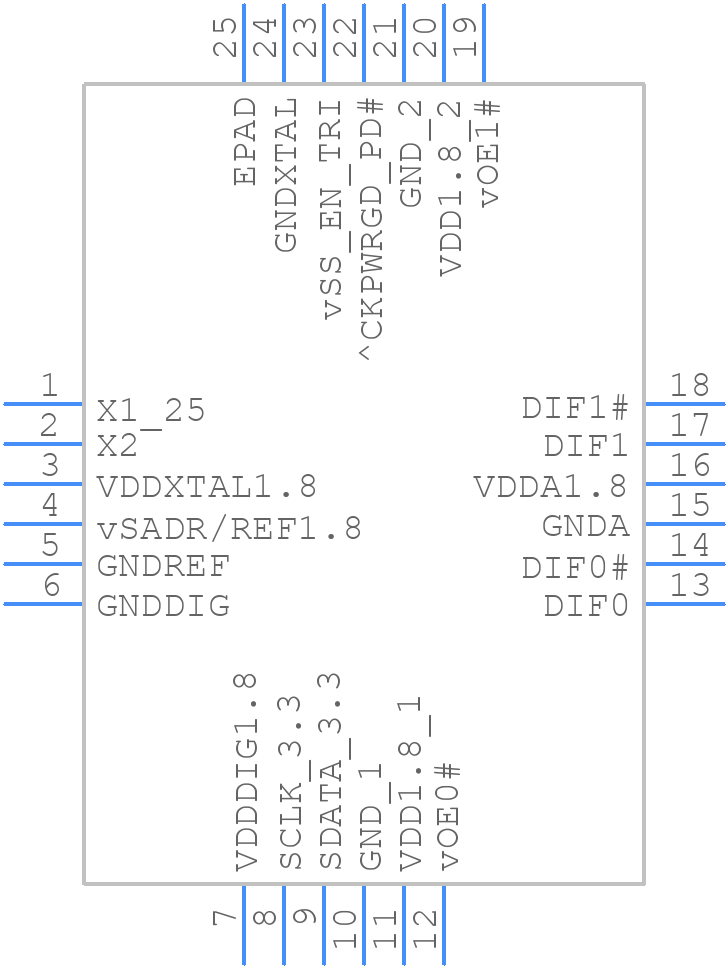

9FGV0231AKLF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9FGV0231AKLF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24P1
click to zoom
3D Models
9FGV0231AKLF - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG24P1
click to zoom

9FGV0231AKLF Details

  • Manufacturer Part Number:

    9FGV0231AKLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Matte Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

9FGV0231AKLF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4333EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends a specific power sequencing scheme in their application note (R01AN4333EJ0100) to ensure proper device operation. This includes powering up the VCCIO and VCC cores in a specific order.
  • The 9FGV0231AKLF is rated for operation up to 125°C, but Renesas recommends derating the device's operating frequency and voltage to ensure reliable operation at high temperatures. Consult the datasheet and application notes for specific guidelines.
  • Renesas provides power-saving features such as dynamic voltage and frequency scaling, as well as clock gating and power gating. Consult the datasheet and application notes for specific implementation details.
  • Renesas recommends following their EMI and EMC design guidelines (R01AN4333EJ0100) which include PCB layout considerations, shielding, and filtering to minimize electromagnetic interference and ensure compliance with regulatory standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9FGV0231AKLF Overview

Use the download button to access the 9FGV0231AKLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGV0, or try a keyword search, such as Clock Generators
