Description:The 9FGV1001 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1001 provides four non-spread-spectrum copies of a single output frequency and two copies of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I²C bits allow easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I²C mode. Four unique I²C addresses are available,
Renesas provides a reference design guide for the 9FGV1001B001NBGI, which includes recommendations for PCB layout, thermal management, and power supply design. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and reliability.
The 9FGV1001B001NBGI requires a specific power sequencing and voltage regulation scheme. Renesas recommends using a dedicated power management IC (PMIC) or a custom power supply design that meets the device's power requirements. The datasheet provides guidelines for power sequencing and voltage regulation, but additional documentation and application notes may be necessary for a specific implementation.
The 9FGV1001B001NBGI is rated for operation up to 125°C, but it's essential to consider thermal management, power dissipation, and reliability when operating in high-temperature environments. Renesas provides thermal models and simulation tools to help designers estimate junction temperatures and optimize their designs. Additionally, derating the device's performance and adjusting the thermal design may be necessary for extreme temperature conditions.
Renesas provides guidelines for EMC and EMI compliance in the datasheet and application notes. Designers should follow these guidelines, which include recommendations for PCB layout, shielding, and filtering. Additionally, it's essential to perform EMC and EMI testing to ensure compliance with relevant standards and regulations.
Renesas offers a range of development tools, including evaluation boards, software development kits (SDKs), and debuggers. The company also provides documentation, application notes, and technical support to help designers get started with the 9FGV1001B001NBGI. Additionally, third-party vendors may offer compatible development tools and software support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGV1001B001NBGI Overview

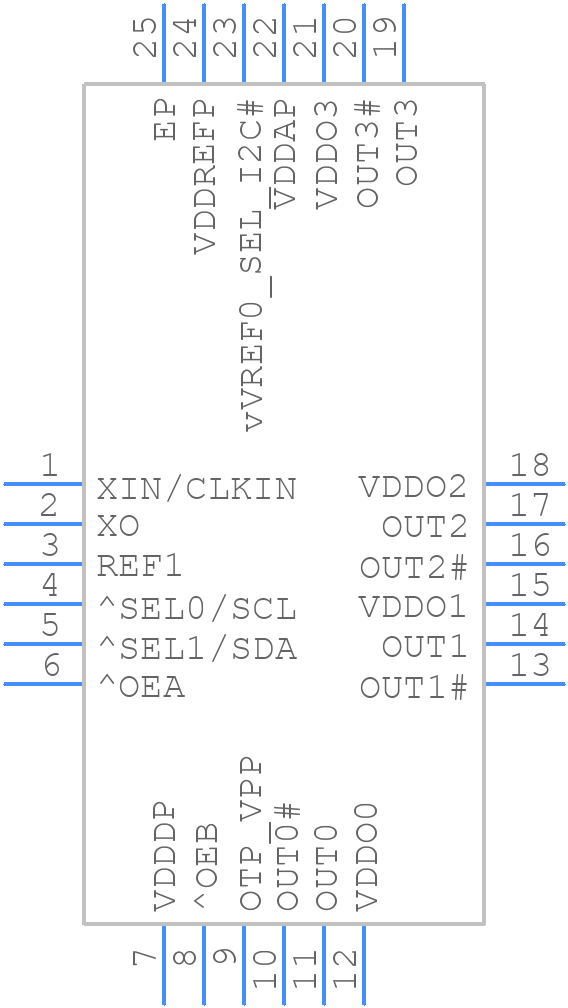

Use the download button to access the 9FGV1001B001NBGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGV1,
or try a keyword search, such as Clock Generators
