9FGV1002C001NBGI - Renesas Electronics

Description: The 9FGV1002 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1002 provides four spread-spectrum copies of a single output frequency and two copies of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I²C bits all easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I²C mode. Four unique I²C addresses are available, allowin

Download 9FGV1002C001NBGI Model

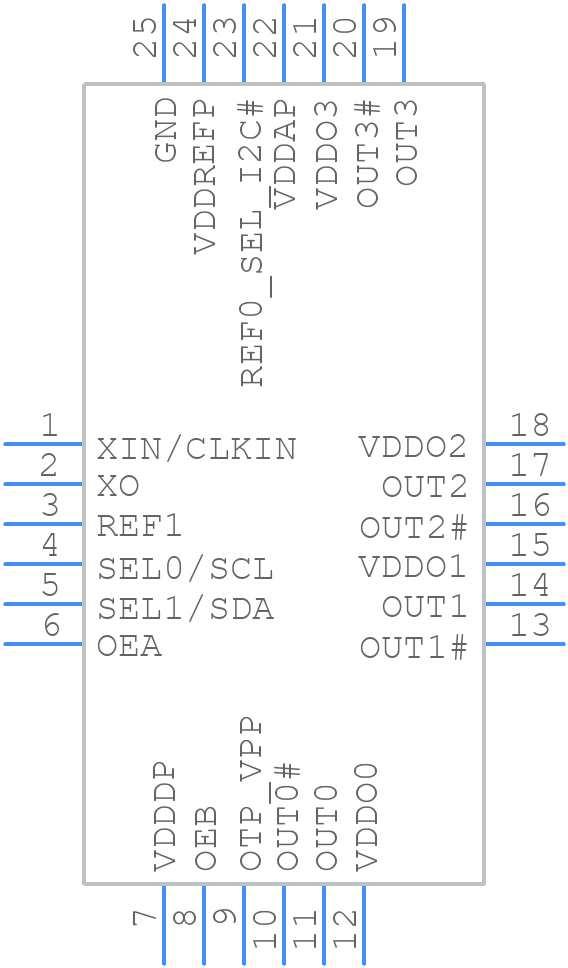

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9FGV1002C001NBGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 4.00x4.00x0.80 mm 0.50mm P_(H=0.8mm)-1
click to zoom
3D Models
9FGV1002C001NBGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - VFQFPN 4.00x4.00x0.80 mm 0.50mm P_(H=0.8mm)-1
click to zoom

9FGV1002C001NBGI Details

  • Manufacturer Part Number:

    9FGV1002C001NBGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    24

  • Manufacturer Package Code:

    NBG24P2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    50 Weeks, 5 Days

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

9FGV1002C001NBGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes, which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize noise.
  • The 9FGV1002C001NBGI requires careful clock signal routing and termination to minimize skew and jitter. Renesas recommends using a clock tree architecture with series termination resistors and AC coupling capacitors to ensure signal integrity.
  • The 9FGV1002C001NBGI has a high thermal design power (TDP) and requires proper thermal management to prevent overheating. Renesas recommends using a heat sink or thermal interface material, and ensuring good airflow around the device to keep the junction temperature within the recommended range.
  • The 9FGV1002C001NBGI has various power-saving features, such as dynamic voltage and frequency scaling, and power gating. Renesas provides guidelines for configuring these features in their datasheet and application notes to achieve low-power operation.
  • The 9FGV1002C001NBGI is a high-frequency device that requires careful EMI and RFI design considerations to minimize electromagnetic interference and radio-frequency interference. Renesas recommends using shielding, filtering, and grounding techniques to ensure compliance with regulatory requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9FGV1002C001NBGI Overview

Use the download button to access the 9FGV1002C001NBGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGV1, or try a keyword search, such as Clock Generators
