9FGV1002C015NBG2 - Renesas Electronics

Description: The 9FGV1002 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1002 provides four spread-spectrum copies of a single output frequency and two copies of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I²C bits all easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I²C mode. Four unique I²C addresses are available, allowin

Download 9FGV1002C015NBG2 Model

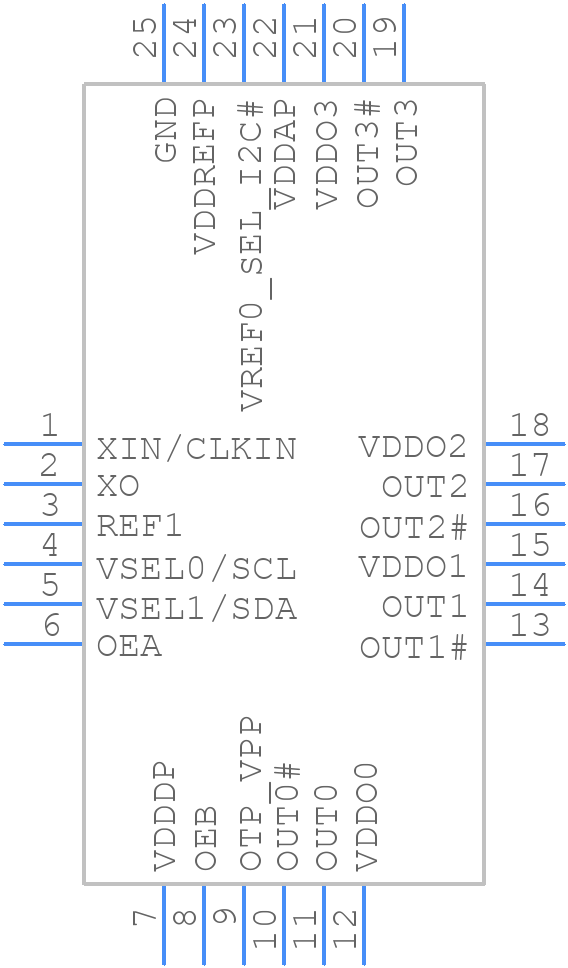

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9FGV1002C015NBG2 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFPN 4.0 x 4.0 x 0.75 mm Body, 0.50 mm Pitch
click to zoom
3D Models
9FGV1002C015NBG2 - Renesas Electronics  - 3D model - Quad Flat No-Lead - 24-VFQFPN 4.0 x 4.0 x 0.75 mm Body, 0.50 mm Pitch
click to zoom

9FGV1002C015NBG2 Details

  • Manufacturer Part Number:

    9FGV1002C015NBG2

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9FGV1002C015NBG2 Overview

Use the download button to access the 9FGV1002C015NBG2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGV1, or try a keyword search, such as Clock Generators
