9FGV1002CQ505LTGI - Renesas Electronics

Description: Clock Generator IC 200MHz, 325MHz 1 24-LFLGA Exposed Pad

Download 9FGV1002CQ505LTGI Model
Schematic

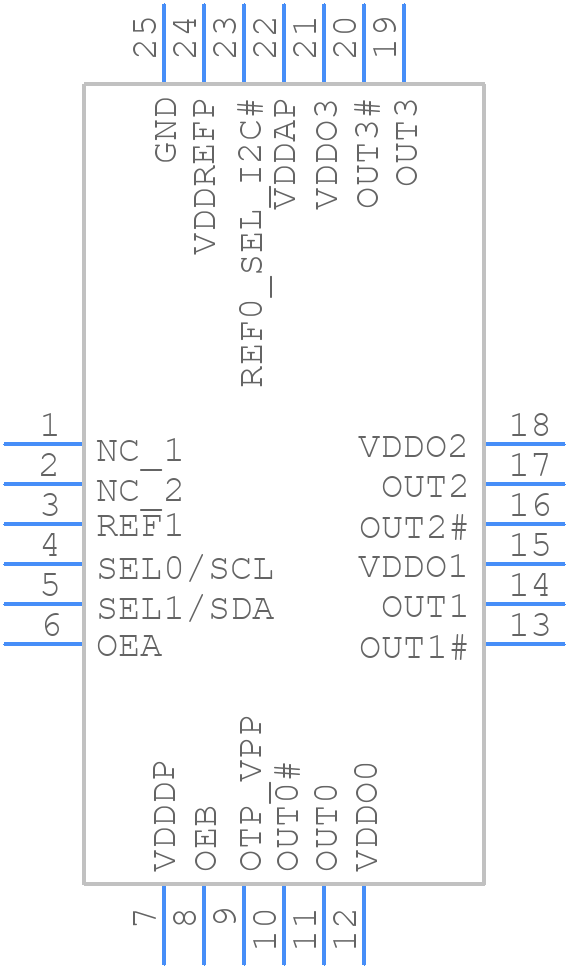

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9FGV1002CQ505LTGI - Renesas Electronics PCB footprint - Other - Other - LGA 4.00x4.00x1.40 mm 0.50mm Pitch_2022_2
click to zoom
3D Models
9FGV1002CQ505LTGI - Renesas Electronics  - 3D model - Other - LGA 4.00x4.00x1.40 mm 0.50mm Pitch_2022_2
click to zoom

9FGV1002CQ505LTGI Details

  • Manufacturer Part Number:

    9FGV1002CQ505LTGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA

  • Pin Count:

    24

  • Manufacturer Package Code:

    LTG24T1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Gold (Au)

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

9FGV1002CQ505LTGI Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for the 9FGV1002CQ505LTGI, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, reduce noise, and prevent thermal issues.
  • Renesas offers a Clock Tree Configuration Tool that helps engineers configure the clock tree and PLL settings for their specific application. The tool provides a graphical interface to select the desired clock frequencies, configure the PLL settings, and generate the required register settings.
  • The 9FGV1002CQ505LTGI requires a specific power sequencing and reset sequence to ensure proper operation. Renesas provides a power sequencing and reset guideline document that outlines the recommended sequence, voltage levels, and timing requirements.
  • Renesas provides a power optimization guide that offers tips and techniques for reducing power consumption in the 9FGV1002CQ505LTGI. This includes strategies for clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
  • Renesas provides a document on EMI and RFI mitigation techniques that offers guidance on reducing electromagnetic interference and radio-frequency interference in the 9FGV1002CQ505LTGI. This includes recommendations for PCB layout, shielding, and filtering.
