9FGV1002CQ515LTGI - Renesas Electronics

Description: The 9FGV1002 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1002 provides four spread-spectrum copies of a single output frequency and two copies of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I²C bits all easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I²C mode. Four unique I²C addresses are available, allowin

Download 9FGV1002CQ515LTGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

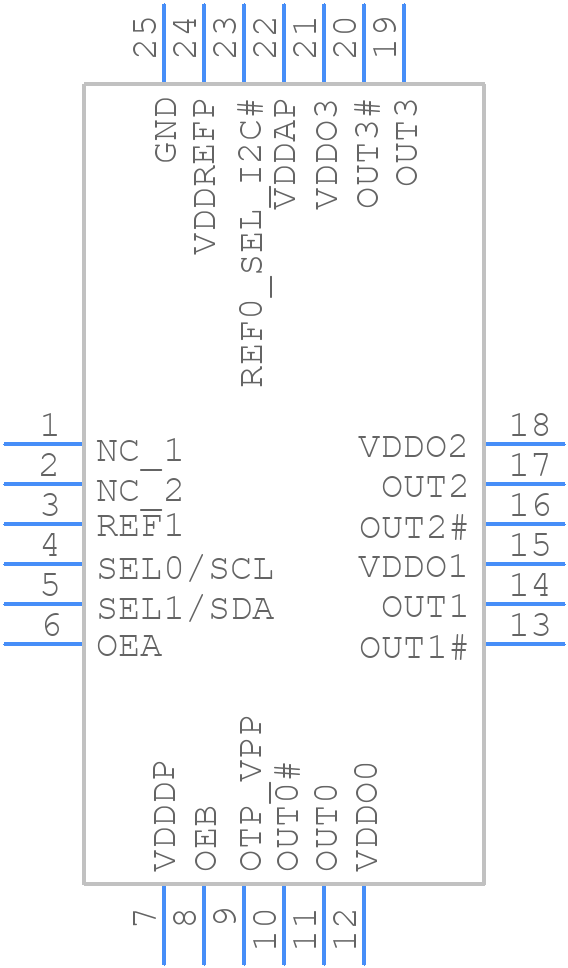

Symbol
9FGV1002CQ515LTGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9FGV1002CQ515LTGI - Renesas Electronics PCB footprint - Other - Other - 9FGV1002CQ515LTGI
click to zoom
3D Models
9FGV1002CQ515LTGI - Renesas Electronics - 3D model - Other - 9FGV1002CQ515LTGI
click to zoom

9FGV1002CQ515LTGI Details

  • Manufacturer Part Number:

    9FGV1002CQ515LTGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA

  • Pin Count:

    24

  • Manufacturer Package Code:

    LTG24T1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Gold (Au)

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

9FGV1002CQ515LTGI Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for the 9FGV1002CQ515LTGI that includes PCB layout and thermal design recommendations. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The 9FGV1002CQ515LTGI has a flexible clocking architecture. Refer to the Renesas clocking configuration guide, which provides detailed instructions on how to configure the clock input and output for various application scenarios.
  • Renesas recommends following a specific power-up and power-down sequence to ensure proper device operation and prevent damage. This information is available in the device's application note or errata document.
  • Renesas provides guidelines and implementation examples for error correction and detection mechanisms, such as ECC and parity schemes, in the device's user manual or application note.
  • For high-temperature applications, it's essential to implement proper thermal management techniques, such as heat sinks, thermal vias, and thermal interface materials. Renesas provides thermal management guidelines in the device's datasheet and application note.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9FGV1002CQ515LTGI Overview

Use the download button to access the 9FGV1002CQ515LTGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGV1, or try a keyword search, such as Clock Generators
