9FGV1005Q505LTGI - Renesas Electronics

Description: The 9FGV1005 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1005 provides 2 copies of a single non-spread spectrum output frequency and one copy of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I²C bits all easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I²C mode. Four unique I²C addresses are available, allowing

Download 9FGV1005Q505LTGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

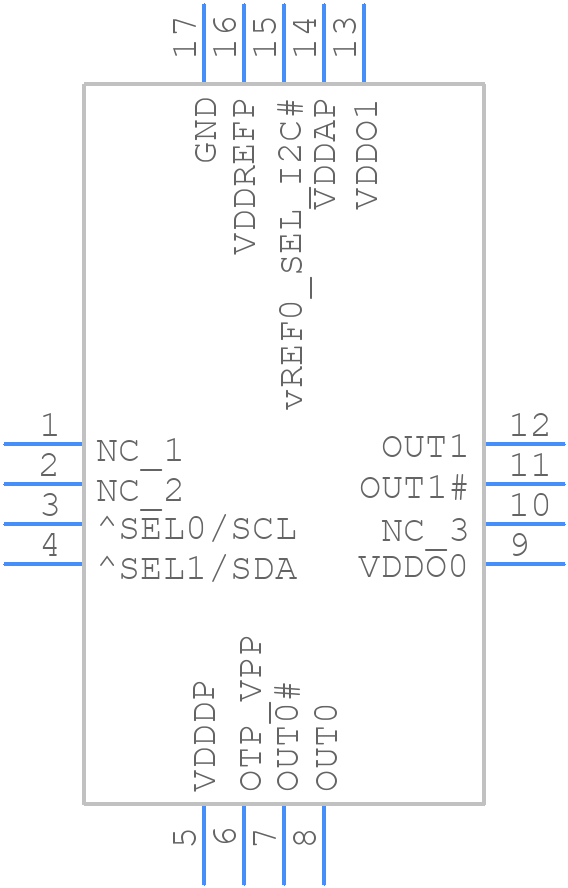

9FGV1005Q505LTGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9FGV1005Q505LTGI - Renesas Electronics PCB footprint - Other - Other - LTG16P1_2
click to zoom
3D Models
9FGV1005Q505LTGI - Renesas Electronics - 3D model - Other - LTG16P1_2
click to zoom

9FGV1005Q505LTGI Details

  • Manufacturer Part Number:

    9FGV1005Q505LTGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    LTG16P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 2.5 V AND 3.3 V SUPPLY

  • JESD-30 Code:

    S-PBGA-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    325 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLGA

  • Package Equivalence Code:

    LGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    50 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    31 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

9FGV1005Q505LTGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes, which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize noise.
  • The 9FGV1005Q505LTGI requires careful clock signal routing and termination to minimize jitter and ensure reliable operation. Renesas recommends using a clock tree architecture with series termination and AC coupling to minimize signal reflections and noise.
  • The 9FGV1005Q505LTGI has a high thermal design power (TDP) and requires proper thermal management to prevent overheating. Renesas recommends using a heat sink or thermal interface material, and ensuring good airflow around the device to keep the junction temperature within the recommended range.
  • The 9FGV1005Q505LTGI has various power-saving features, such as dynamic voltage and frequency scaling, and power gating. Renesas provides guidelines for configuring these features in their datasheet and application notes to achieve low-power operation.
  • The 9FGV1005Q505LTGI is a high-frequency device that requires careful EMI and RFI design considerations to minimize electromagnetic interference and radio-frequency interference. Renesas recommends using shielding, filtering, and grounding techniques to minimize emissions and improve immunity.
