Description:The 9FGV1005 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1005 provides 2 copies of a single non-spread spectrum output frequency and one copy of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I²C bits all easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I²C mode. Four unique I²C addresses are available, allowing
Renesas provides a reference design guide for the 9FGV1005Q506LTGI, which includes recommendations for PCB layout, thermal management, and power supply design. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and signal integrity.
Renesas recommends using a clock tree architecture with a central clock source and distributing it to the various clock domains within the FPGA. Proper termination, such as using series resistors and capacitors, is crucial to minimize signal reflections and ensure clock signal integrity.
The 9FGV1005Q506LTGI requires a specific power sequencing and ramp-up procedure to ensure proper operation. Renesas recommends following the power-up sequence outlined in the datasheet, with a ramp-up time of at least 1 ms to prevent damage to the device.
To optimize power consumption, engineers can use power-saving features such as clock gating, dynamic voltage and frequency scaling, and power islands. Additionally, using a low-power mode, reducing the operating frequency, and optimizing the design for low power consumption can help minimize heat generation.
Renesas recommends following best practices for signal integrity, such as using differential signaling, minimizing trace lengths, and using shielding and grounding techniques. For EMI mitigation, engineers should use techniques such as spread spectrum clocking, EMI filters, and shielding to minimize radiation and susceptibility.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGV1005Q506LTGI Overview

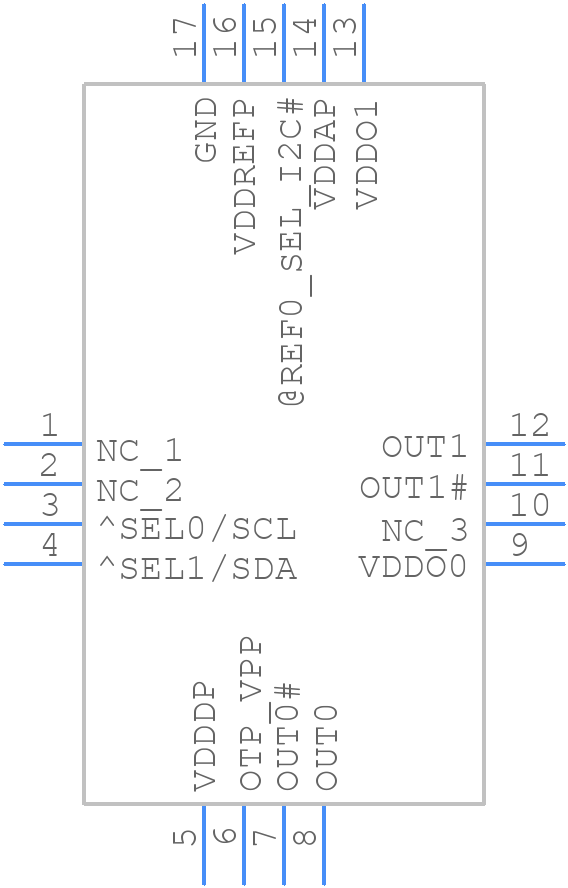

Use the download button to access the 9FGV1005Q506LTGI schematic symbol, PCB footprint, and 3D model.
