Description:The 9FGV1006 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1006 provides 2 copies of a of a single integer, fractional or spread-spectrum output frequency and one copy of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I²C bits all easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I²C mode. Four unique I²C addresses
Renesas provides a reference design guide for the 9FGV1006CQ506LTGI, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, reduce noise, and prevent thermal issues.
The 9FGV1006CQ506LTGI requires a specific power sequencing and voltage regulation scheme. Renesas recommends using a power management IC (PMIC) specifically designed for the FPGA, such as the Renesas ISL91211A. The PMIC should be configured according to the FPGA's power requirements and sequencing guidelines.
The 9FGV1006CQ506LTGI's high-speed transceivers have specific constraints and limitations, such as lane reversal, polarity inversion, and clocking requirements. It's essential to consult the FPGA's user manual and high-speed transceiver user guide to ensure proper implementation and avoid signal integrity issues.
The 9FGV1006CQ506LTGI's clocking architecture can be optimized for specific applications by using the FPGA's clocking wizard tool, which helps to configure clock domains, clock frequencies, and clock routing. Additionally, Renesas provides guidelines for clocking architecture optimization in the FPGA's user manual.
Renesas provides guidelines for implementing DDR memory interfaces with the 9FGV1006CQ506LTGI, including recommendations for memory controller configuration, signal integrity, and timing closure. It's essential to follow these guidelines to ensure reliable and high-performance memory operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGV1006CQ506LTGI Overview

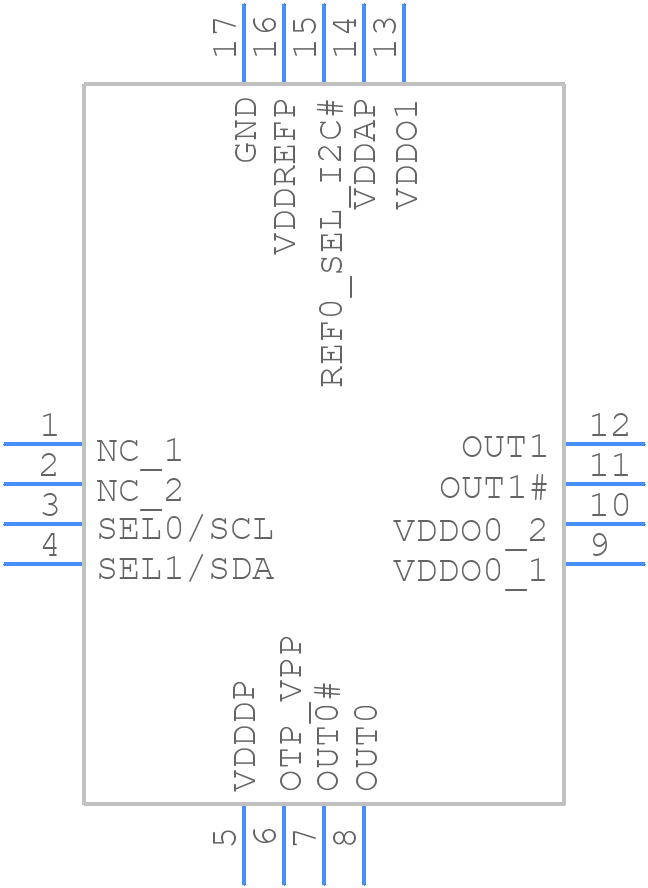

Use the download button to access the 9FGV1006CQ506LTGI schematic symbol, PCB footprint, and 3D model.
