Description:The 9LPRS436C is a low power CK505-compatible clock targeted at Intel-based Netbooks and Nettops. This clock synthesizer provides a single chip solution for systems using the Intel NM10 chipset paired with the Intel N450/D410/D510 Atom® CPUs. The 9LPRS436C is driven with a 25MHz crystal.
Renesas provides a reference design guide and thermal management guidelines in their application notes and design resources. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
Renesas recommends using their power management ICs (PMICs) specifically designed for the 9LPRS436CGILFT. These PMICs provide the necessary power sequencing, voltage regulation, and monitoring. Refer to the PMIC datasheet and application notes for implementation details.
The recommended PLL and clock configuration settings can be found in the 9LPRS436CGILFT datasheet and application notes. Additionally, Renesas provides a clock configuration tool that helps engineers optimize the clock settings for their specific application.
To optimize the 9LPRS436CGILFT for low power consumption, engineers can use the device's power-saving features, such as dynamic voltage and frequency scaling, clock gating, and power gating. Renesas provides guidelines and tools to help optimize power consumption in their application notes and design resources.
Renesas provides guidelines and recommendations for EMI and EMC considerations in their application notes and design resources. Engineers should follow these guidelines to ensure compliance with regulatory requirements and minimize EMI and EMC issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9LPRS436CGILFT Overview

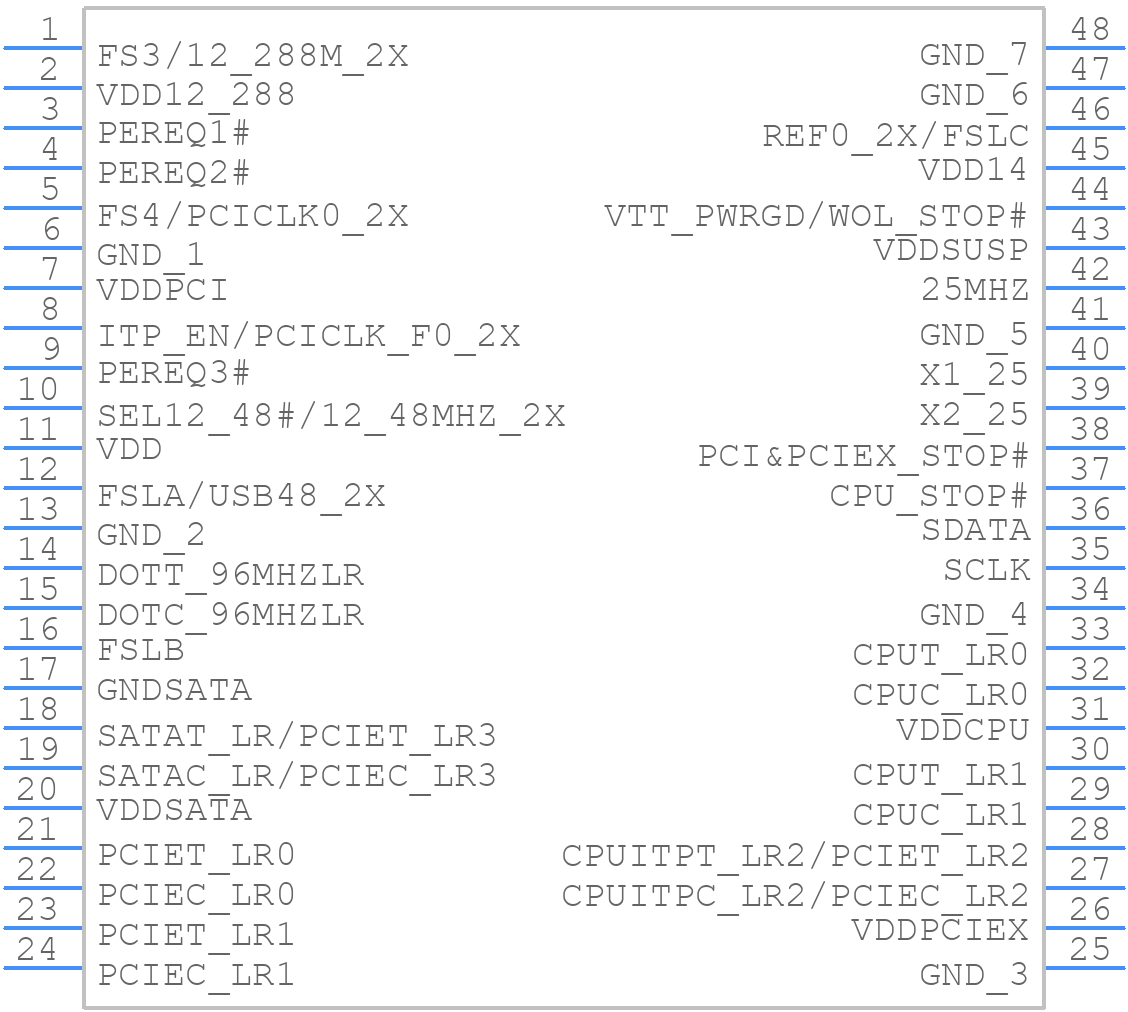

Use the download button to access the 9LPRS436CGILFT schematic symbol, PCB footprint, and 3D model.
