Description:The 9LPRS436C is a low power CK505-compatible clock targeted at Intel-based Netbooks and Nettops. This clock synthesizer provides a single chip solution for systems using the Intel NM10 chipset paired with the Intel N450/D410/D510 Atom® CPUs. The 9LPRS436C is driven with a 25MHz crystal.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN98374) and evaluation board documentation. It's essential to follow these guidelines to ensure proper signal integrity, power supply decoupling, and thermal management.
The 9LPRS436CKILFT requires a specific power-up sequence to ensure proper operation. Renesas recommends using a power management IC (PMIC) like the RAA210xxx series, which provides a pre-configured power-up sequence and voltage regulation. Consult the PMIC datasheet and application notes for implementation details.
The 9LPRS436CKILFT has a high power dissipation rating, so thermal management is crucial. Ensure good airflow, use a heat sink or thermal pad, and follow Renesas' thermal design guidelines (e.g., AN98375) to keep the device within its operating temperature range.
Renesas provides a range of application notes and software development kits (SDKs) that offer optimization guidelines and code examples for various use cases (e.g., motor control, power conversion). Consult these resources and engage with Renesas' support teams for customized guidance.
The 9LPRS436CKILFT is a high-frequency device that requires careful EMI and EMC design considerations. Follow Renesas' guidelines for PCB layout, shielding, and filtering to minimize electromagnetic interference and ensure compliance with relevant standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9LPRS436CKILFT Overview

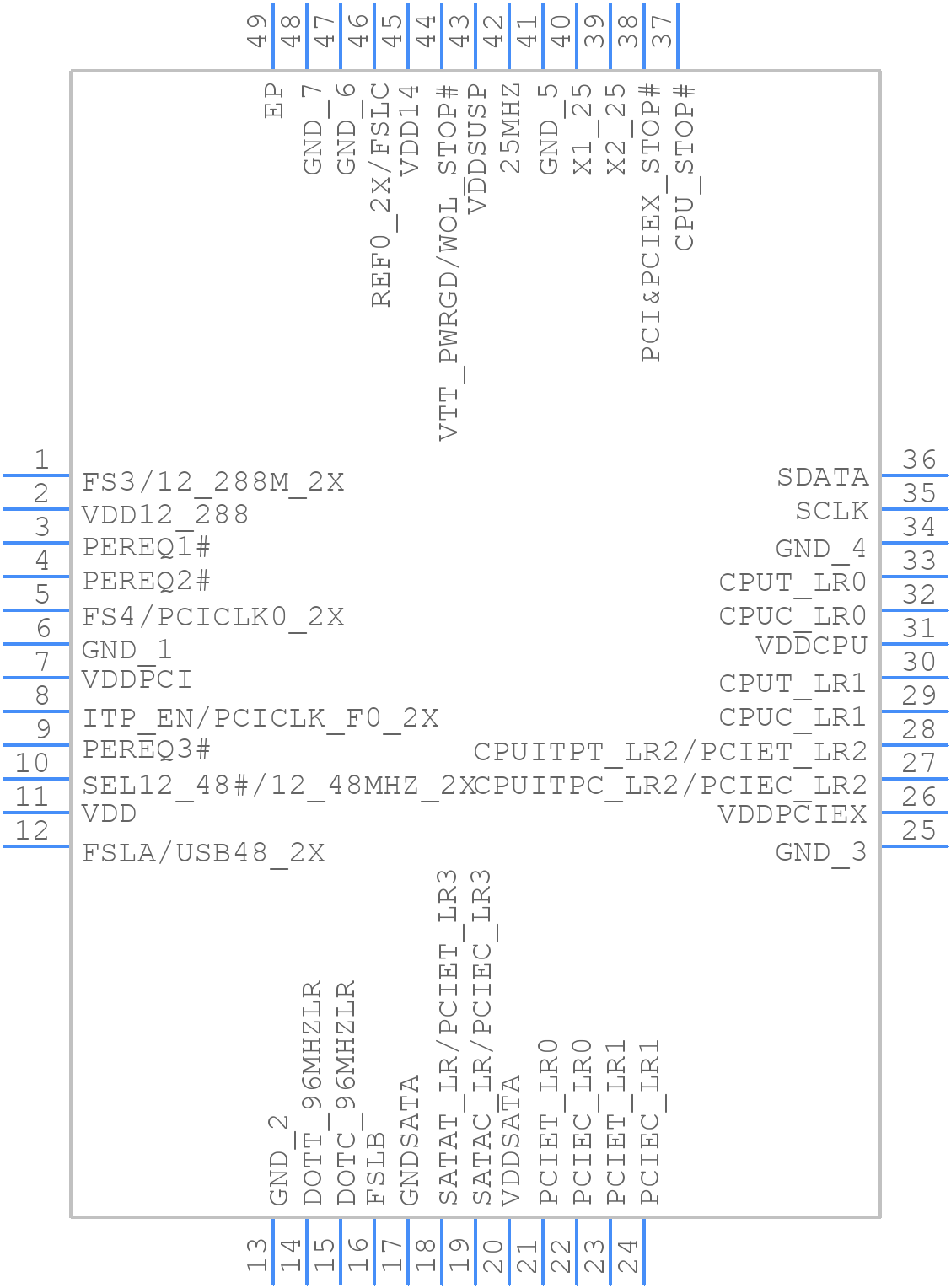

Use the download button to access the 9LPRS436CKILFT schematic symbol, PCB footprint, and 3D model.
