Description:The 9ZXL0631E is a second-generation, enhanced-performance DB800ZL derivative. The part is a pin-compatible upgrade to the 9ZXL0631A, while offering a much improved phase jitter performance. A fixed external feedback maintains low drift for critical QPI/UPI applications.
Renesas provides a reference design guide and thermal design guide for the 9ZXL0631EKILFT, which includes recommendations for PCB layout, thermal vias, and heat sink design. It's essential to follow these guidelines to ensure optimal performance and prevent thermal throttling.
Renesas recommends using a power management IC (PMIC) specifically designed for the 9ZXL0631EKILFT, such as the Renesas ISL91211A. This PMIC provides the necessary power sequencing, voltage regulation, and monitoring functions. The datasheet and application notes provide detailed guidance on implementing power sequencing and voltage regulation.
The recommended clock and PLL configuration settings can be found in the 9ZXL0631EKILFT's datasheet and application notes. Renesas also provides a clock tree configuration tool to help engineers optimize the clock settings for their specific application.
Renesas provides guidelines for optimizing the 9ZXL0631EKILFT's performance in low-power modes and sleep states through the use of power gating, clock gating, and voltage scaling. Engineers can also use the device's built-in power management features, such as the Power Management Unit (PMU), to optimize power consumption.
Renesas provides guidelines for EMI and EMC design considerations in the 9ZXL0631EKILFT's datasheet and application notes. Engineers should follow best practices for PCB layout, shielding, and filtering to minimize EMI and ensure compliance with EMC regulations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9ZXL0631EKILFT Overview

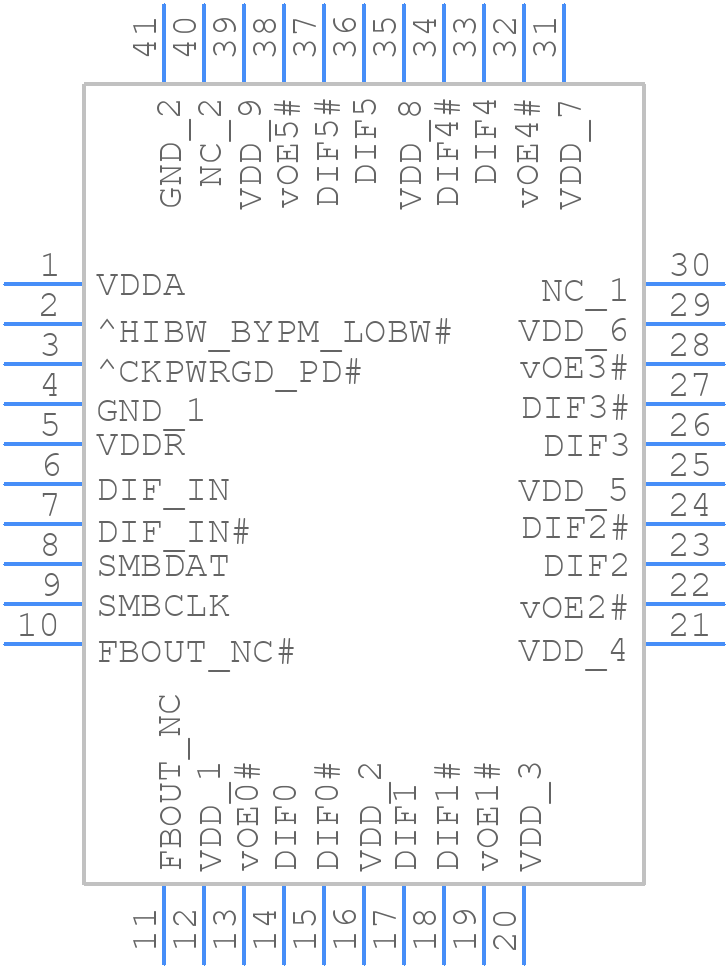

Use the download button to access the 9ZXL0631EKILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9ZXL0,
or try a keyword search, such as Clock Drivers
