9ZXL0852EKILF - Renesas Electronics

Description: The 9ZXL0852E is a second-generation, enhanced performance DB800ZL differential buffer. The part is pin-compatible to the 9ZXL0851A while offering a much improved phase jitter performance. A fixed external feedback maintains low drift for critical QPI/UPI applications. The 9ZXL0852E has an SMBus Write Lockout pin for increased device and system security.

Download 9ZXL0852EKILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

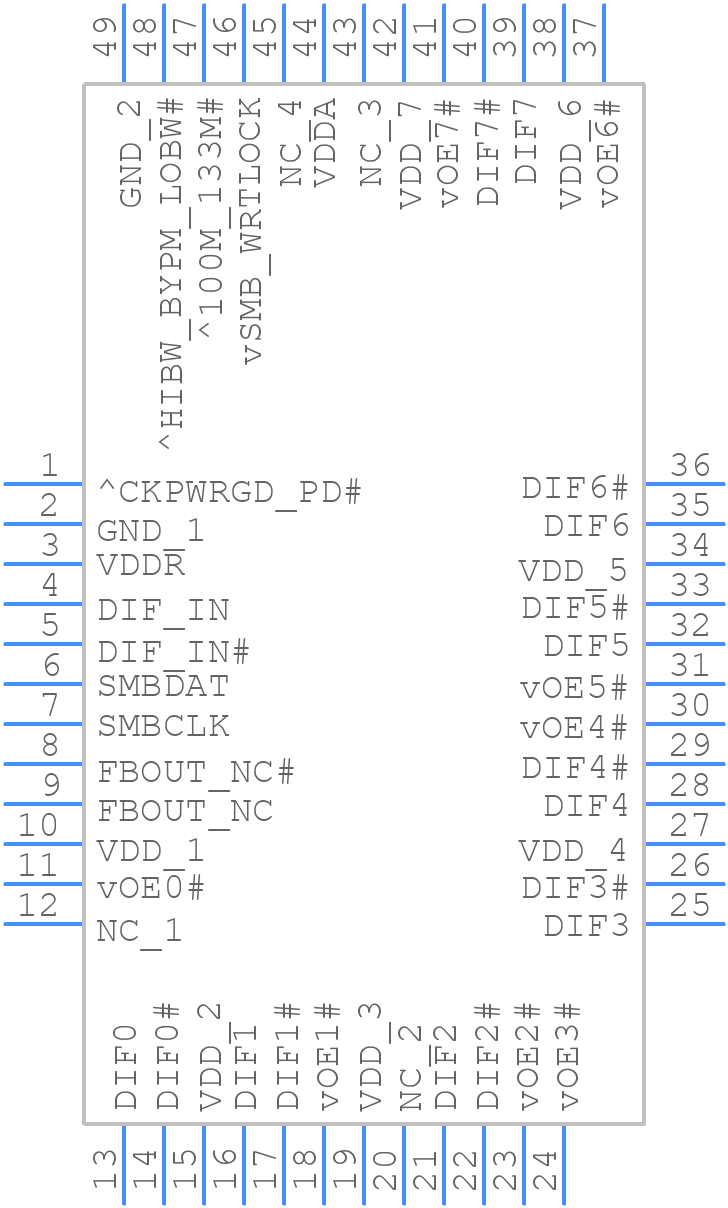

9ZXL0852EKILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9ZXL0852EKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 6 × 6 mm, 0.4mm pitch 48-VFQFPN
click to zoom
3D Models
9ZXL0852EKILF - Renesas Electronics - 3D model - Quad Flat No-Lead - 6 × 6 mm, 0.4mm pitch 48-VFQFPN
click to zoom

9ZXL0852EKILF Details

  • Manufacturer Part Number:

    9ZXL0852EKILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    48

  • Manufacturer Package Code:

    IDTDUMMY00

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-08-28

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    9ZXL

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    68 mA

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

9ZXL0852EKILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., DG0094). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Configuration Register (CKR). Refer to the Renesas RA Family Software Package (FSP) documentation and the device's user manual for detailed information on clock configuration.
  • The maximum operating temperature range for the 9ZXL0852EKILF is -40°C to +125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Always check the datasheet and application notes for specific temperature-related guidelines.
  • The 9ZXL0852EKILF supports various power-saving modes, including Sleep, Low-Power, and Deep Sleep modes. These modes can be implemented using the Power Management Controller (PMC) and the System Clock Controller (SCC). Refer to the device's user manual and application notes for detailed information on power-saving mode implementation.
  • Renesas recommends using decoupling capacitors with a value of 0.1 μF to 1 μF, depending on the specific application and operating frequency. It's essential to place these capacitors close to the power pins to minimize noise and ensure stable operation.
