A-2014-2-4-LP/FS-R - ASSMANN WSW components GmbH

A-2014-2-4-LP/FS-R Details

• Manufacturer Part Number:

  A-2014-2-4-LP/FS-R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  ASSMANN WSW components GmbH

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.53 inch

• Body Depth:

  0.62 inch

• Body Length:

  0.72 inch

• Body/Shell Style:

  JACK

• Connector Type:

  TELECOM AND DATACOM CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Resistance:

  20 mΩ

• Contact Style:

  TELCOM, MODULAR

• Dielectric Withstanding Voltage:

  1400VAC V

• Durability:

  500 Cycles

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number of Ports:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

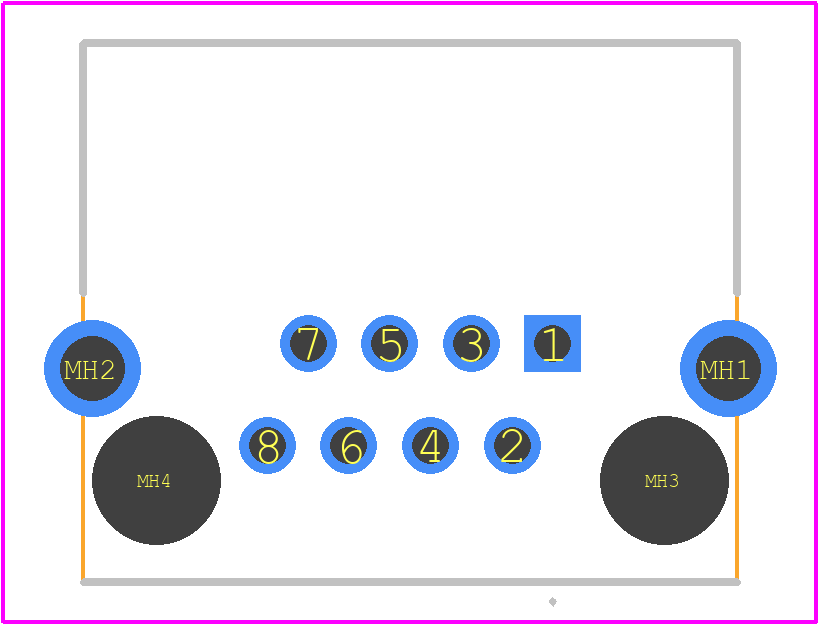

• PCB Contact Pattern:

  STAGGERED

• Plating Thickness:

  6u inch

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  BRASS

• Terminal Length:

  0.1 inch

• Terminal Pitch:

  2.032 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  8
