A-USBSA - ASSMANN WSW components GmbH

Description: USB A type DIP ASSMANN WSW Female 1 port Right Angle Through Hole Type A USB Connector

Download A-USBSA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A-USBSA - ASSMANN WSW components GmbH - PCB symbol
click to zoom
PCB Footprints

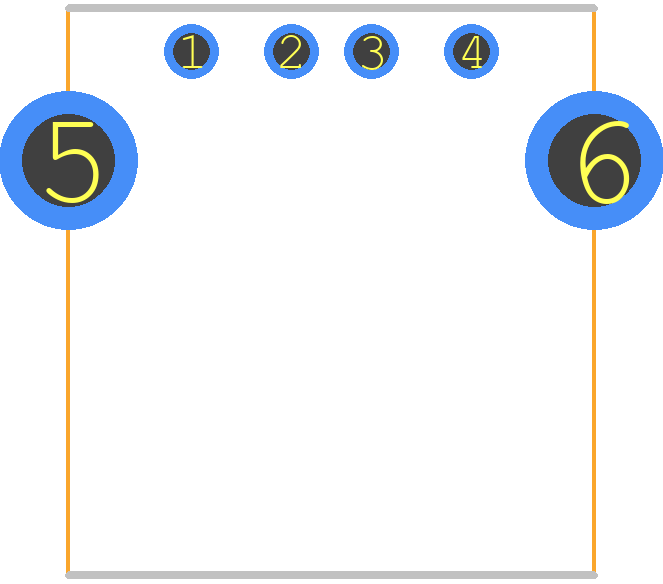

A-USBSA - ASSMANN WSW components GmbH PCB footprint - Other - Other - A-USBSA
click to zoom
3D Models
A-USBSA - ASSMANN WSW components GmbH - 3D model - Other - A-USBSA
click to zoom

A-USBSA Details

  • Manufacturer Part Number:

    A-USBSA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    ASSMANN WSW components GmbH

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

A-USBSA Frequently Asked Questions (FAQs)

  • The maximum current rating for the A-USBSA is 1.5A per USB port, but it's recommended to limit the current to 0.5A per port to ensure reliable operation.
  • Yes, the A-USBSA is backward compatible with USB 2.0 devices and can also support USB 3.0 devices, but the speed will be limited to USB 2.0 speeds.
  • The operating temperature range for the A-USBSA is -20°C to 80°C, but it's recommended to operate within 0°C to 60°C for optimal performance.
  • Yes, the A-USBSA is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure reliable operation.
  • Yes, the A-USBSA is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU markets.
