A00-216-260-450 - EDAC

Description: Modular Connectors / Ethernet Connectors 2 PORT RT ANGLE CAT 5 GOLD FLASH

Download A00-216-260-450 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A00-216-260-450 - EDAC - PCB symbol
click to zoom
PCB Footprints

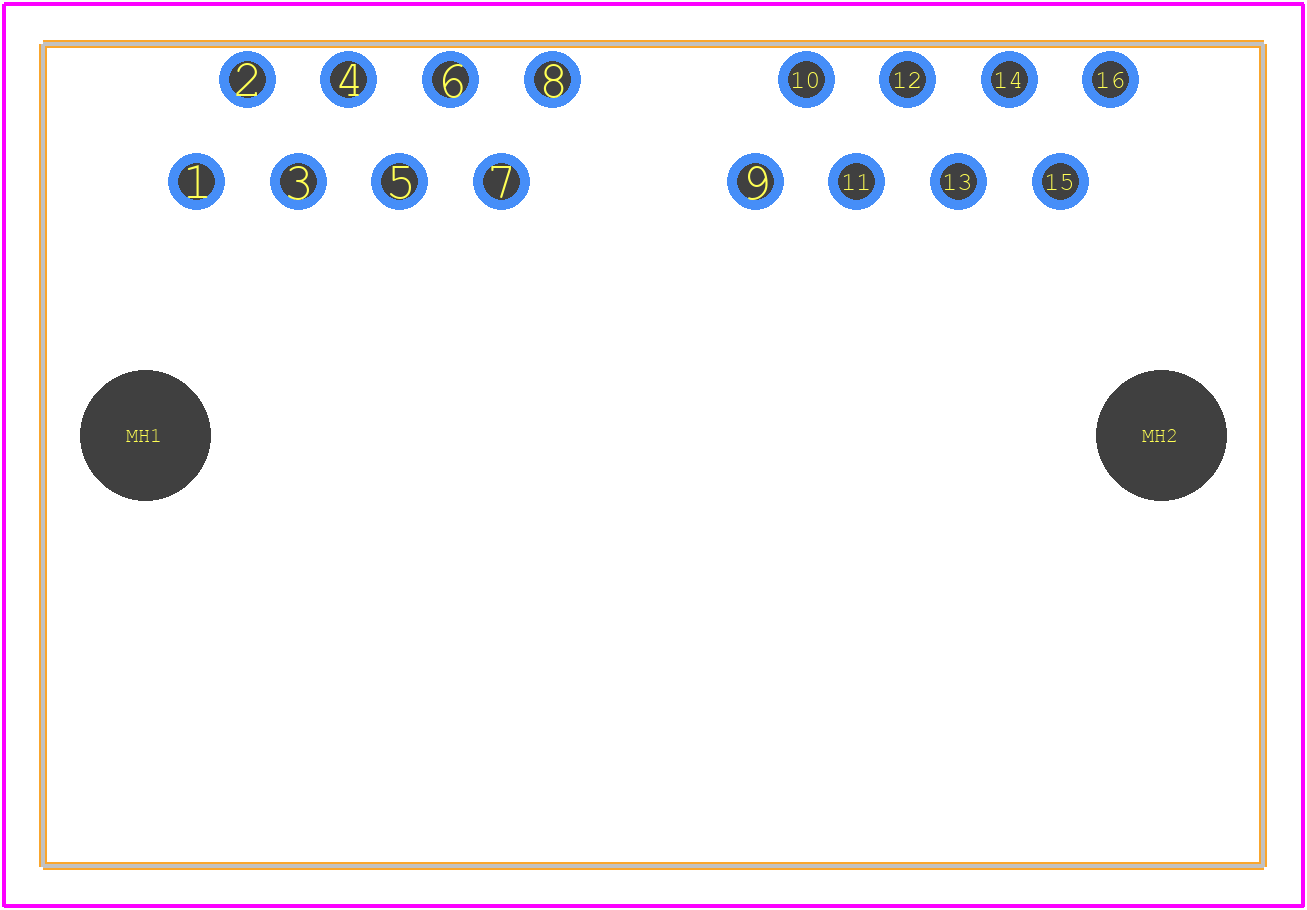

A00-216-260-450 - EDAC PCB footprint - Other - Other - A00-216-260-450
click to zoom
3D Models
A00-216-260-450 - EDAC - 3D model - Other - A00-216-260-450
click to zoom

A00-216-260-450 Details

  • Manufacturer Part Number:

    A00-216-260-450

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COOPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    EDAC Inc

  • YTEOL:

    8.1

  • Additional Feature:

    2 PORTS, 8 POSITIONS EACH

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

A00-216-260-450 Frequently Asked Questions (FAQs)

  • The recommended torque for the connectors on the A00-216-260-450 is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the A00-216-260-450 is designed to withstand high-vibration environments and can operate in applications with vibrations up to 10G.
  • The operating temperature range of the A00-216-260-450 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the A00-216-260-450 is compatible with lead-free soldering processes and can withstand the higher temperatures required for lead-free soldering.
  • The A00-216-260-450 has a moisture sensitivity level (MSL) of 3, which means it can be exposed to a relative humidity of 60% at 30°C (86°F) for 168 hours without damage.
