A0009-ALD - COILCRAFT

Description: Transformer, for NSC LM5000, SMT, RoHS 3.3 V , 3 A, 100 kHz, 6.6 W

Download A0009-ALD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

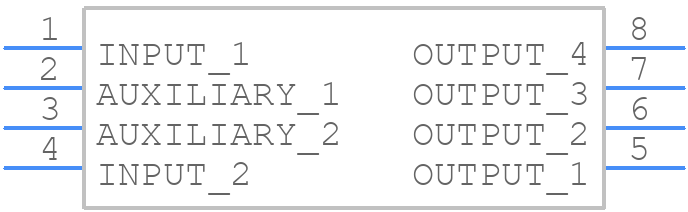

Symbol
A0009-ALD - COILCRAFT - PCB symbol
click to zoom

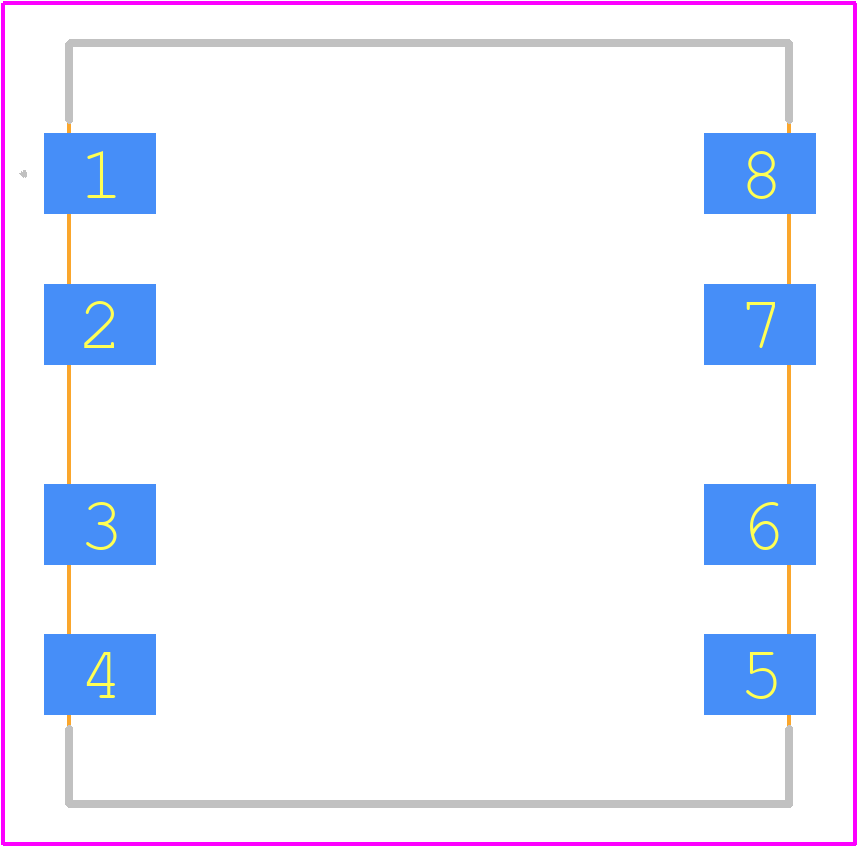

PCB Footprints
A0009-ALD - COILCRAFT PCB footprint - Other - Other - A0009-ALD-3
click to zoom
3D Models
A0009-ALD - COILCRAFT - 3D model - Other - A0009-ALD-3
click to zoom

A0009-ALD Details

  • Manufacturer Part Number:

    A0009-ALD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.2

  • Height:

    13.5 mm

  • Input Voltage-Max:

    55 V

  • Input Voltage-Min:

    18 V

  • Length:

    19 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    3.3 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    6.6 W

  • Primary Inductance:

    100 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Matte Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    18 mm

A0009-ALD Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended land pattern for the A0009-ALD in their datasheet, which includes a suggested pad layout and dimensions for optimal assembly and performance.
  • The A0009-ALD is rated for operation up to 125°C, but derating may be necessary for temperatures above 85°C. Consult Coilcraft's temperature derating chart for specific guidance.
  • The A0009-ALD is a shielded inductor, and Coilcraft recommends keeping the inductor at least 2 mm away from any ferromagnetic materials to maintain its shielding effectiveness.
  • The SRF of the A0009-ALD is not explicitly stated in the datasheet, but it can be estimated using Coilcraft's online inductor simulation tool or by contacting their technical support team.
  • The A0009-ALD has a maximum current rating of 1.3 A, and exceeding this rating may lead to overheating or reduced lifespan. Consult Coilcraft's current derating chart for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A0009-ALD Overview

Use the download button to access the A0009-ALD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A0009, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
