A1-12PA-2.54DS(71) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

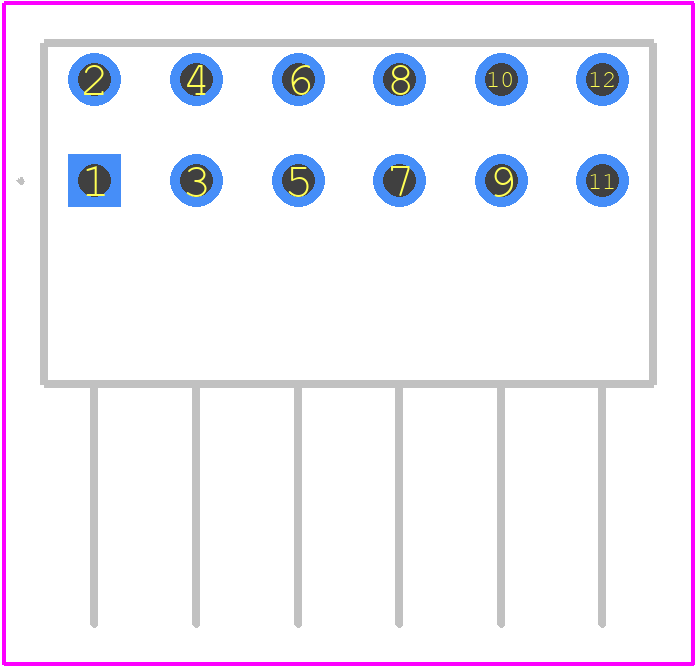

A1-12PA-2.54DS(71) - Hirose PCB footprint - Other - Other - A1-12PA-2.54DS(71)-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for A1-12PA-2.54DS(71)
Part Number A1-12PA-2.54DS(71)
Manufacturer Hirose
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - A1-12PA-2.54DS(71)-6
Released Date May 12, 2022
Last Modified Date Apr 14, 2026 9:02 AM UTC
Pinout / Pin List Click Here (Member Only)

A1-12PA-2.54DS(71) Details

Manufacturer Part Number:
A1-12PA-2.54DS(71)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
9
Connector Type:
BOARD CONNECTOR

A1-12PA-2.54DS(71) Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
Yes, the A1-12PA-2.54DS(71) is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration.
The operating temperature range for the A1-12PA-2.54DS(71) is -40°C to 105°C (-40°F to 221°F).
Yes, the A1-12PA-2.54DS(71) has a moisture-resistant design and can operate in environments with a relative humidity of up to 90%.
The A1-12PA-2.54DS(71) has a mating cycle life of 500 cycles minimum.

Trust Checks

Community Provided

System Verified

Community Approved

A1-12PA-2.54DS(71) Overview

Use the download button to access the A1-12PA-2.54DS(71) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like A1-12, or try a keyword search, such as Headers and Edge Type Connectors
