The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
Yes, the A1-14PA-2.54DS(71) is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
The operating temperature range for the A1-14PA-2.54DS(71) is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating information.
Yes, the A1-14PA-2.54DS(71) is designed to be used in harsh environments and can withstand exposure to dust, moisture, and other environmental factors. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
It's not recommended to use the A1-14PA-2.54DS(71) with a different mating connector from a different manufacturer. Hirose Electric Co Ltd recommends using their mating connectors to ensure compatibility and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1-14PA-2.54DS(71) Overview

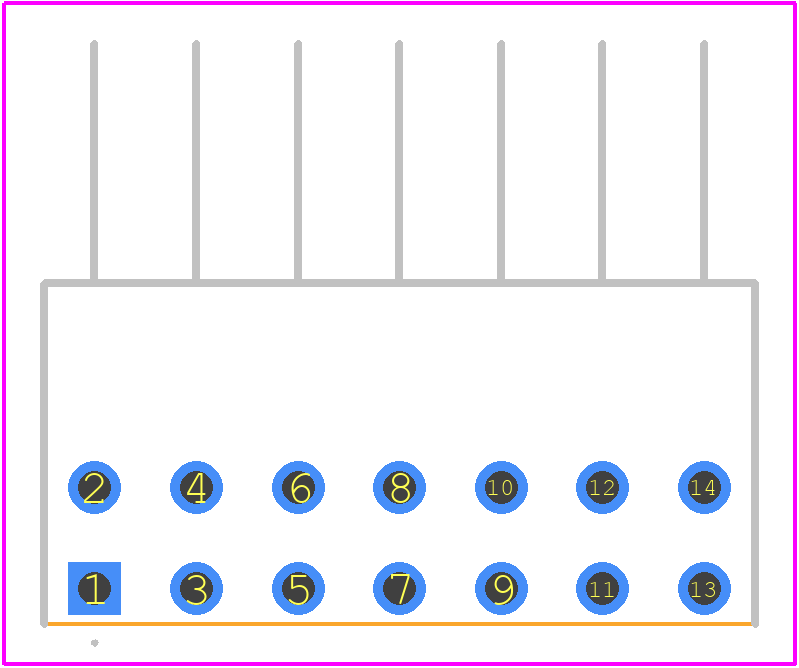

Use the download button to access the A1-14PA-2.54DS(71) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like A1-14,
or try a keyword search, such as Headers and Edge Type Connectors
