A1-20PA-2.54DS(71) - Hirose

Description: Hirose A1, 2.54mm Pitch, 20 Way, 2 Row, Right Angle Pin Header, Through Hole

Download A1-20PA-2.54DS(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A1-20PA-2.54DS(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

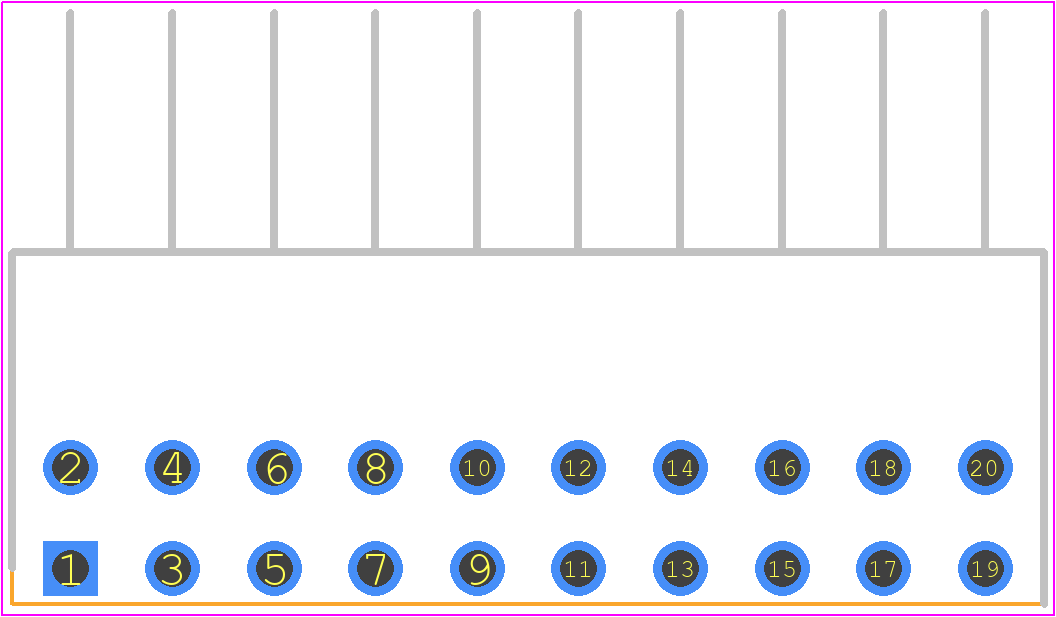

A1-20PA-2.54DS(71) - Hirose PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - A1-20PA-2.54DS(71)
click to zoom
3D Models
A1-20PA-2.54DS(71) - Hirose - 3D model - Header, Unshrouded - Right Angle PTH Pin - A1-20PA-2.54DS(71)
click to zoom

A1-20PA-2.54DS(71) Details

  • Manufacturer Part Number:

    A1-20PA-2.54DS(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD CONNECTOR

A1-20PA-2.54DS(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the connector is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration, and 3 mm amplitude.
  • The operating temperature range for the A1-20PA-2.54DS(71) connector is -40°C to 105°C (-40°F to 221°F).
  • While the connector is not specifically designed for outdoor use, it can be used in outdoor applications if properly sealed and protected from environmental factors such as moisture and UV exposure.
  • The mating cycle life of the connector is 500 cycles minimum.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A1-20PA-2.54DS(71) Overview

Use the download button to access the A1-20PA-2.54DS(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1-20, or try a keyword search, such as Headers and Edge Type Connectors
