A1-20PA-2.54DSA(71) - Hirose

Description: Hirose A1 Series, 2.54mm Pitch 20 Way 2 Row Straight Pin Header, Through Hole, Solder Termination

Download A1-20PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A1-20PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

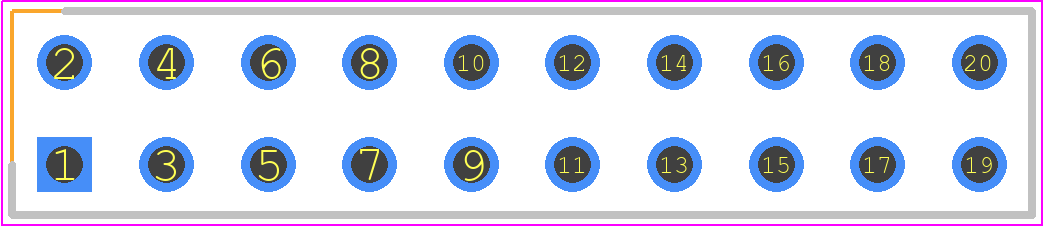

A1-20PA-2.54DSA(71) - Hirose PCB footprint - Header, Vertical - Header, Vertical - A1-20PA_2.54mm
click to zoom
3D Models
A1-20PA-2.54DSA(71) - Hirose - 3D model - Header, Vertical - A1-20PA_2.54mm
click to zoom

A1-20PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    A1-20PA-2.54DSA(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

A1-20PA-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
  • Yes, the A1-20PA-2.54DSA(71) is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
  • The A1-20PA-2.54DSA(71) has a operating temperature range of -40°C to 105°C and is designed to withstand harsh environments. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
  • It's not recommended to use the A1-20PA-2.54DSA(71) with a mating connector from a different manufacturer. Hirose Electric Co Ltd recommends using their mating connectors to ensure compatibility and reliability.
  • The maximum current rating for the A1-20PA-2.54DSA(71) is 1A per contact. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A1-20PA-2.54DSA(71) Overview

Use the download button to access the A1-20PA-2.54DSA(71) schematic symbol, PCB footprint, and 3D model.
