A101MD9AG04 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

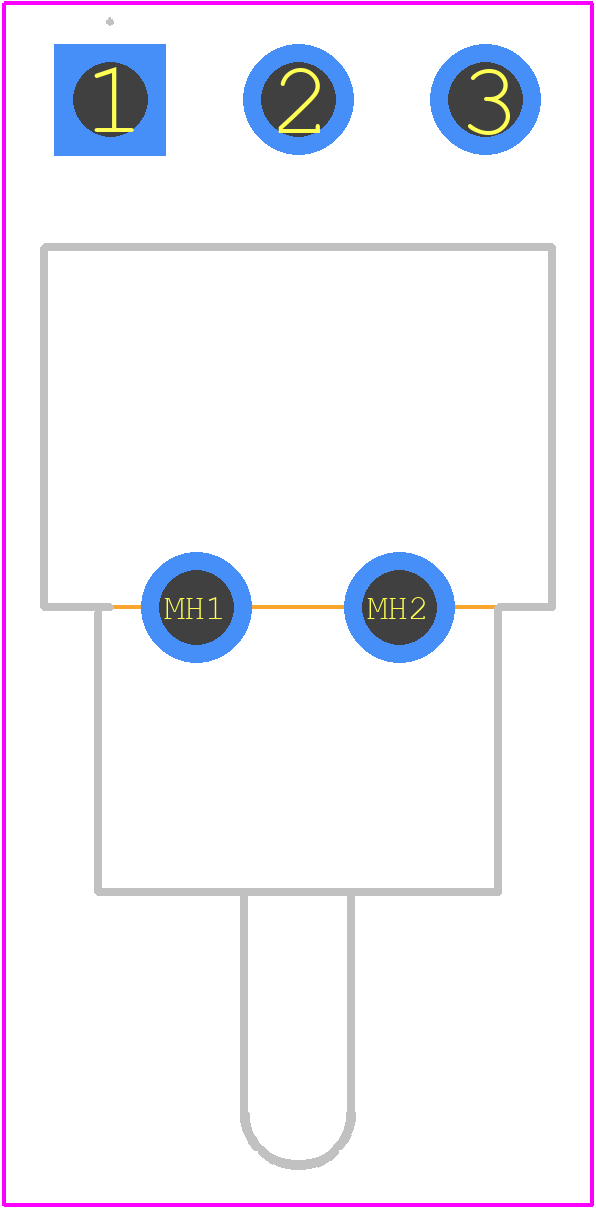

A101MD9AG04 - TE Connectivity PCB footprint - Other - Other - A101MD9AG04-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for A101MD9AG04
Part Number A101MD9AG04
Manufacturer TE Connectivity
Pin Count 5
Part Category Switch
Package Category Other
Footprint Name Other - A101MD9AG04-2
Released Date Aug 12, 2023
Last Modified Date Aug 12, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

A101MD9AG04 Details

Manufacturer Part Number:
A101MD9AG04
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.50.90.65
Manufacturer:
TE Connectivity
YTEOL:
0
Actuator Finish:
NICKEL
Actuator Length:
0.27 inch
Actuator Type:
SHORT TYPE
Body Breadth:
12.7 mm
Body Height:
6.86 mm
Body Length or Diameter:
12.7 mm
Bushing Length:
0.28 inch
Center Contact Plating:
GOLD OVER SILVER
Contact Current(AC)-Max:
0.4 A
Contact Current(DC)-Max:
0.4 A
Contact Function:
ON-ON
Contact Resistance:
0.01 mΩ
Contact Voltage(AC)-Max:
20 V
Contact Voltage(DC)-Max:
20 V
Dielectric Withstand Volts:
1000 V
End Contact Material:
COPPER ALLOY
Illumination:
NON-ILLUMINATED
Insulation Resistance:
1000000000 Ω
Mounting Feature:
PANEL MOUNT
Sealing:
EPOXY TERMINAL SEALED
Surface Mount:
NO
Switch Action:
LATCHED
Switch Function:
SPDT
Switch Type:
TOGGLE SWITCH
Termination Type:
SOLDER

A101MD9AG04 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the A101MD9AG04 is -40°C to 125°C.
Yes, the A101MD9AG04 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
The typical lead time for the A101MD9AG04 can vary depending on the supplier and the quantity ordered. However, it is usually around 8-12 weeks.
Yes, the A101MD9AG04 is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, defense, and industrial equipment.
Yes, the A101MD9AG04 is designed to operate in harsh environments, including high humidity and salt spray. It meets the requirements of various environmental standards, such as MIL-STD-202 and IEC 60068.

Trust Checks

Community Provided

System Verified

Community Approved

A101MD9AG04 Overview

Use the download button to access the A101MD9AG04 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like A101M, or try a keyword search, such as Toggle Switches
