A105MYV30Q04 - TE Connectivity

Description: TE Connectivity SPDT Toggle Switch, (On)-Off-(On), PCB

Download A105MYV30Q04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

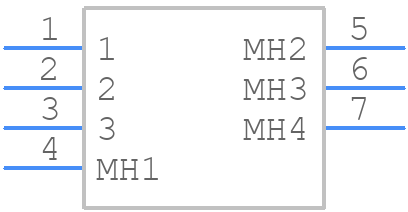

A105MYV30Q04 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

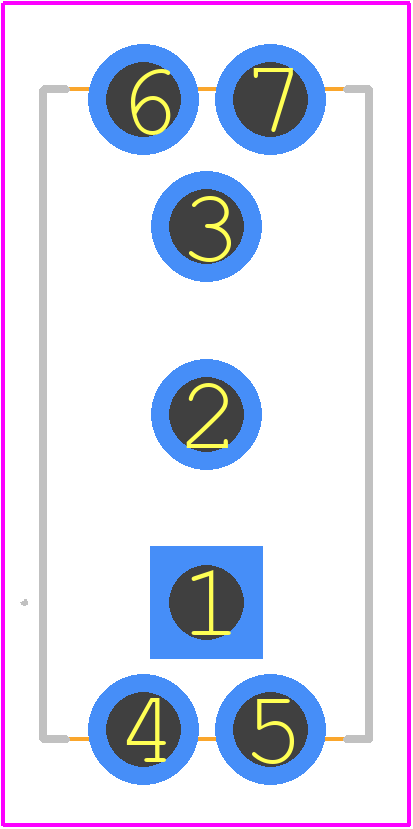

A105MYV30Q04 - TE Connectivity PCB footprint - Other - Other - A105MYV30Q04-1
click to zoom
3D Models
A105MYV30Q04 - TE Connectivity - 3D model - Other - A105MYV30Q04-1
click to zoom

A105MYV30Q04 Details

  • Manufacturer Part Number:

    A105MYV30Q04

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Actuator Finish:

    NICKEL

  • Actuator Length:

    0.2 inch

  • Actuator Type:

    SHORT TYPE

  • Body Breadth:

    8.13 mm

  • Body Height:

    11.68 mm

  • Body Length or Diameter:

    15.75 mm

  • Bushing Diameter:

    0.249 inch

  • Bushing Length:

    0.35 inch

  • Bushing Type:

    1/4-40

  • Center Contact Plating:

    SILVER

  • Contact (AC) Max Rating R Load:

    5A@120VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact (DC) Max Rating R Load:

    5A@28VDC

  • Contact Function:

    (ON)-OFF-(ON)

  • Contact Resistance:

    0.01 mΩ

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    28 V

  • Dielectric Withstand Volts:

    1000 V

  • Electrical Life:

    6000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • Illumination:

    NON-ILLUMINATED

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPDT

  • Switch Type:

    TOGGLE SWITCH

  • Termination Type:

    SOLDER
