A110LR09A00GR - ANAREN

Description: Sub-GHz Modules 868-870MHz and 902-928MHz -40C +85C

Download A110LR09A00GR Model

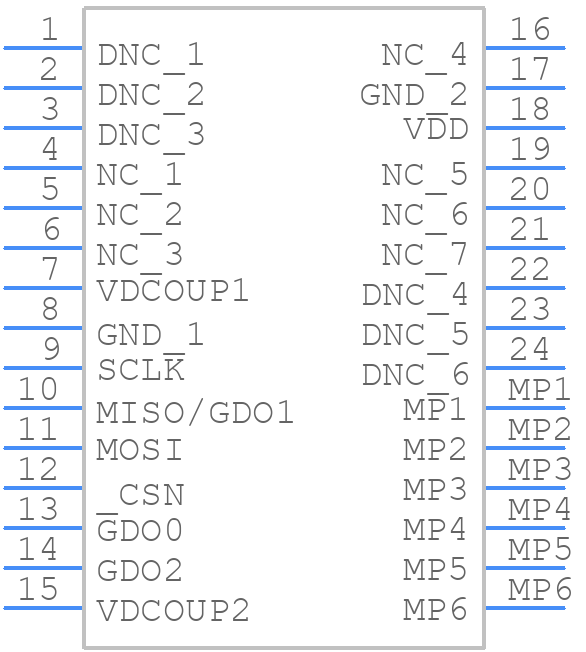

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

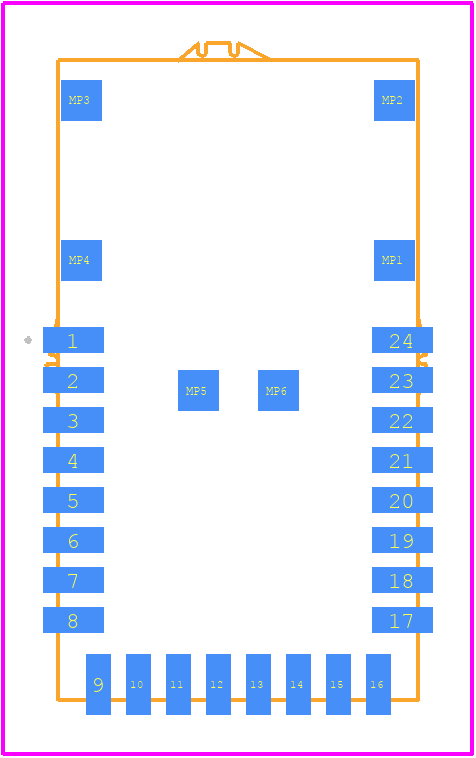

A110LR09A00GR - ANAREN PCB footprint - Other - Other - A110LR09A00GR-1
click to zoom

A110LR09A00GR Details

  • Manufacturer Part Number:

    A110LR09A00GR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    LGA-24

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    52 Weeks, 1 Day

  • Manufacturer:

    Anaren Microwave

  • JESD-30 Code:

    R-XBGA-N24

  • Length:

    16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Width:

    9 mm

  • uPs/uCs/Peripheral ICs Type:

    RF SOC

A110LR09A00GR Frequently Asked Questions (FAQs)

  • Anaren provides a recommended PCB layout and land pattern in their application note AN-112, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The A110LR09A00GR has a thermal resistance of 25°C/W. To manage thermal performance, ensure good heat sinking, use thermal vias, and consider using a thermal interface material. Keep the component away from heat sources and ensure good airflow.
  • While the datasheet specifies an operating frequency range of 9 kHz to 9 GHz, the device can be used up to 12 GHz with some degradation in performance. However, it's essential to consult with Anaren's application engineers to determine the feasibility of using the device at frequencies above 9 GHz.
  • Yes, the A110LR09A00GR is a compact device with a small footprint, making it suitable for space-constrained designs. However, ensure that the PCB layout and component placement are optimized to minimize parasitic effects and ensure optimal performance.
  • Anaren provides a troubleshooting guide in their application note AN-115, which covers common issues and their solutions. Additionally, consult with Anaren's application engineers for personalized support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A110LR09A00GR Overview

Use the download button to access the A110LR09A00GR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like A110L, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
