A11HB - NKK Switches

A11HB Details

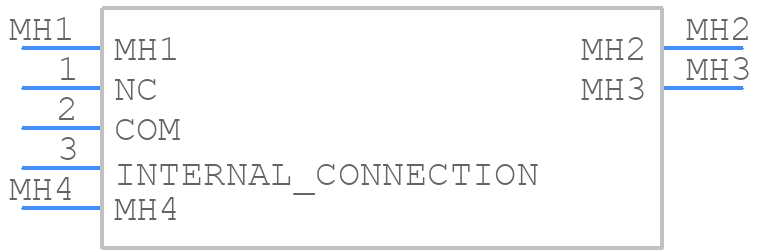

• Manufacturer Part Number:

  A11HB

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  NKK Switches

• YTEOL:

  7.3

• Actuator Angle:

  26 deg

• Actuator Finish:

  NICKEL

• Actuator Length:

  0.248 inch

• Actuator Material:

  BRASS

• Actuator Type:

  SQUARE FLAT TYPE

• Body Breadth:

  5.84 mm

• Body Height:

  8.6 mm

• Body Length or Diameter:

  9.8 mm

• Bushing Length:

  0.177 inch

• Bushing Type:

  UNTHREADED

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD OVER SILVER

• Contact (AC) Max Rating R Load:

  0.014A@28VAC

• Contact Current(AC)-Max:

  0.014 A

• Contact Current(DC)-Max:

  0.014 A

• Contact (DC) Max Power Rating R Load:

  0.4VA@28VDC

• Contact (DC) Max Rating R Load:

  0.014A@28VDC

• Contact Function:

  OFF-ON

• Contact Resistance:

  0.05 mΩ

• Contact Voltage(AC)-Max:

  28 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  BRASS

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  PHOSPHOR BRONZE

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  500000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -10 °C

• PCB Hole Count:

  7

• Sealing:

  EPOXY TERMINAL SEALED

• Solderability:

  HAND/WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  GOLD OVER NICKEL

• Terminal Length:

  0.122 inch

• Termination Type:

  SOLDER

• Washability:

  SOLVENT
