- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for A12415RNCQ
- Part Number A12415RNCQ
- Manufacturer LITTELFUSE
- Pin Count 5
- Part Category Switch
- Package Category Other

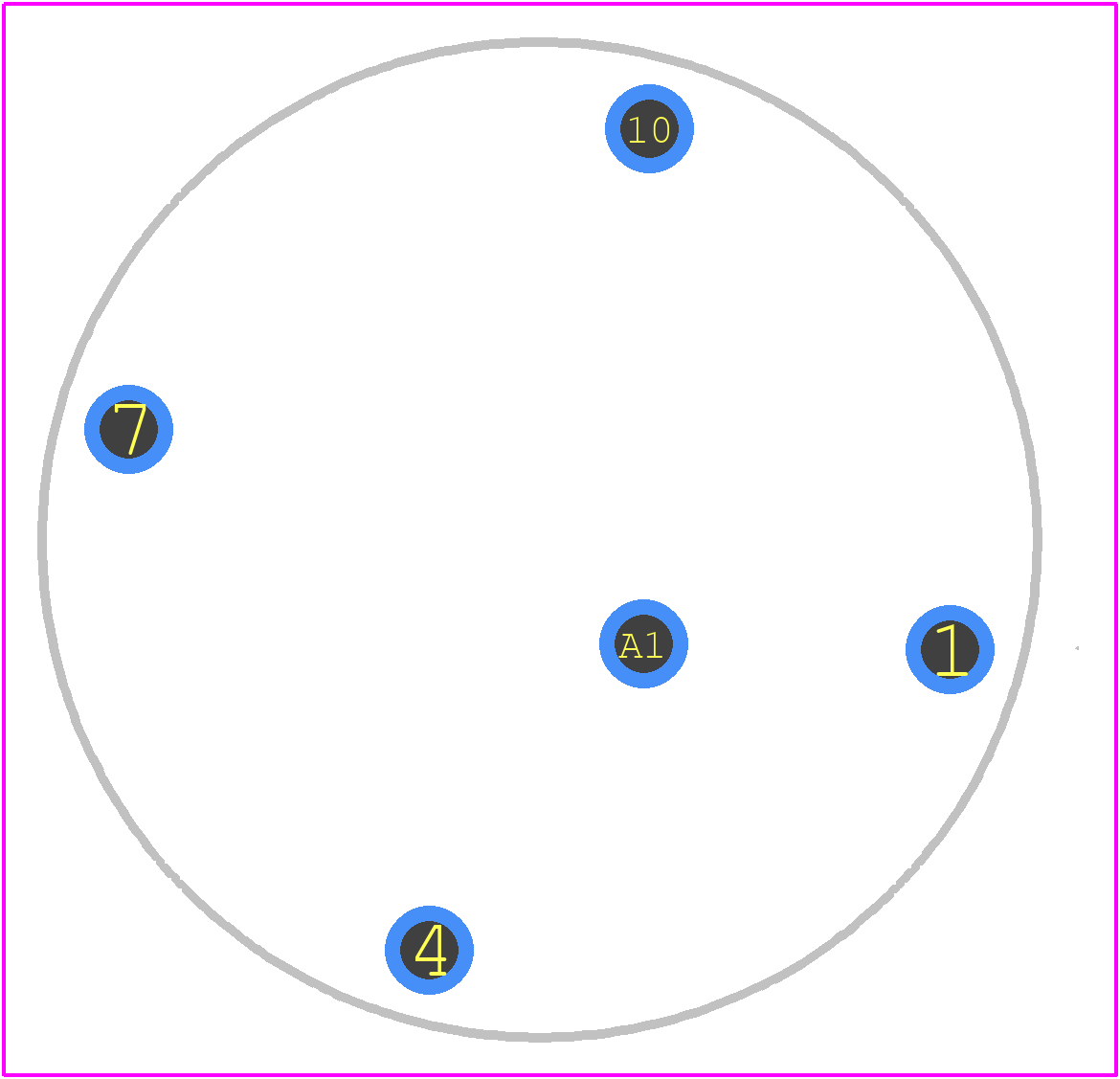

- Footprint Name Other - A12403RNCQ
- Released Date May 20, 2019
- Last Modified Date Apr 10, 2026 9:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
A12415RNCQ Details
-
Manufacturer Part Number:
A12415RNCQ
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Vietnam
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.20
-
Manufacturer:
Littelfuse Inc
-
YTEOL:
6
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
A12415RNCQ Overview
Use the download button to access the A12415RNCQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1241,
or try a keyword search, such as Rotary Switches
