A12515RNCQ - LITTELFUSE

Description: Rotary Switches SP 8 Shaft PC Pins 2.5A 125VAC 125VDC

Download A12515RNCQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

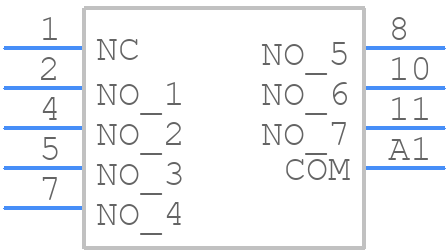

A12515RNCQ - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

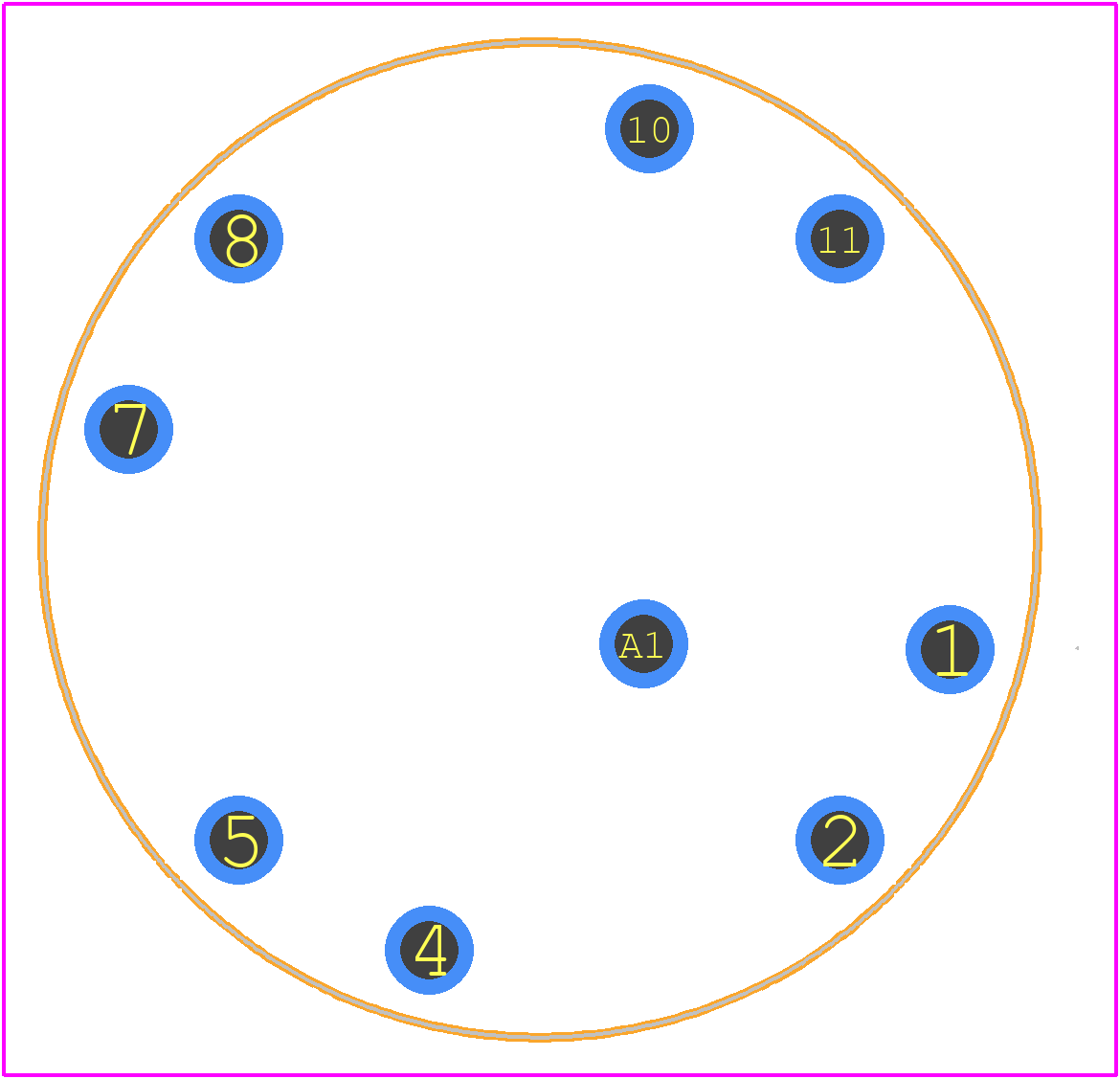

A12515RNCQ - LITTELFUSE PCB footprint - Other - Other - A12515RNCQ
click to zoom
3D Models
A12515RNCQ - LITTELFUSE - 3D model - Other - A12515RNCQ
click to zoom

A12515RNCQ Details

  • Manufacturer Part Number:

    A12515RNCQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.20

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A12515RNCQ Overview

Use the download button to access the A12515RNCQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1251, or try a keyword search, such as Rotary Switches
