A good PCB layout for the A1334LLETR-T involves keeping the sensitive analog signals away from the digital signals, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI.
Calibration involves applying a known magnetic field to the sensor and adjusting the offset and sensitivity registers to achieve accurate measurements. The datasheet provides a calibration procedure, and Allegro also offers a calibration tool.
The A1334LLETR-T is rated for operation from -40°C to 150°C, but the accuracy and sensitivity may degrade at extreme temperatures. It's essential to consider the application's temperature range when designing with this sensor.
The A1334LLETR-T outputs a 12-bit digital signal. You'll need to implement a microcontroller or DSP to process the data, applying any necessary filtering, scaling, and calibration to obtain meaningful measurements.
To minimize noise and ensure stable operation, use a 10 μF ceramic capacitor and a 100 nF ceramic capacitor in parallel, placed as close as possible to the VCC pin. This helps to filter out high-frequency noise and ripple.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1334LLETR-T Overview

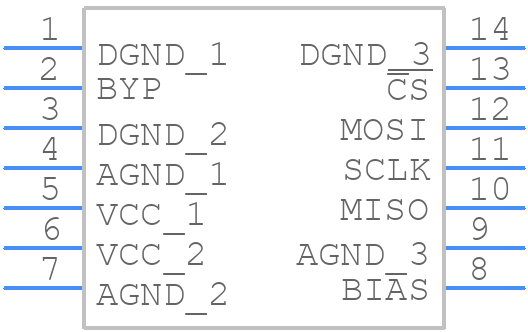

Use the download button to access the A1334LLETR-T schematic symbol, PCB footprint, and 3D model.
