A1346LLETR-DD-T - Allegro Microsystems

Description: Dual Die Programmable Linear Hall IC

Download A1346LLETR-DD-T Model

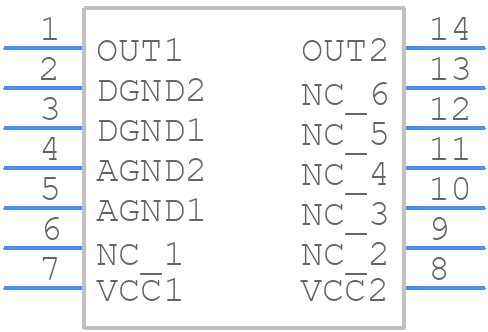

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A1346LLETR-DD-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LE, 14-Pin TSSOP (dual die)
click to zoom
3D Models
A1346LLETR-DD-T - Allegro Microsystems  - 3D model - Small Outline Packages - LE, 14-Pin TSSOP (dual die)
click to zoom

A1346LLETR-DD-T Details

  • Manufacturer Part Number:

    A1346LLETR-DD-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TSSOP-14

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    4.4 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Channels:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Circuit Type:

    OPEN-DRAIN

  • Output Interface Type:

    3-WIRE INTERFACE

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    9300 µs

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR, HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

A1346LLETR-DD-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout guide in their application note AN296068, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The A1346LLETR-DD-T has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
  • Allegro recommends a 10 μF to 22 μF ceramic capacitor with a voltage rating of 10 V or higher for the VCC filter capacitor. The capacitor should be placed as close as possible to the VCC pin and grounded to the thermal ground plane.
  • Start by verifying the power supply voltage, ensuring it's within the recommended range. Check the PCB layout and component placement for any errors or omissions. Use an oscilloscope to verify the input and output signals, and consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the A1346LLETR-DD-T is AEC-Q100 qualified, which makes it suitable for automotive applications. However, ensure that the device is used within the recommended operating conditions and that the PCB design meets the requirements for automotive applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A1346LLETR-DD-T Overview

Use the download button to access the A1346LLETR-DD-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1346, or try a keyword search, such as Linear Position Sensors
