A1363LLUTR-2-T - Allegro Microsystems

Description: Low Noise, High Precision, Programmable Linear Hall-Effect Sensor IC

Download A1363LLUTR-2-T Model

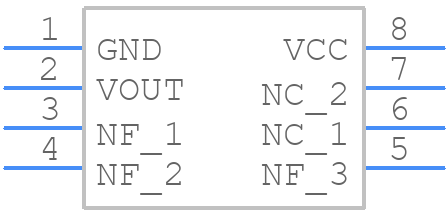

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A1363LLUTR-2-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LU, 8-Pin TSSOP
click to zoom
3D Models
A1363LLUTR-2-T - Allegro Microsystems  - 3D model - Small Outline Packages - LU, 8-Pin TSSOP
click to zoom

A1363LLUTR-2-T Details

  • Manufacturer Part Number:

    A1363LLUTR-2-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-8

  • Manufacturer:

    Allegro MicroSystems LLC

  • Terminal Finish:

    Tin (Sn)

A1363LLUTR-2-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout guide in their application note AN296068, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The A1363LLUTR-2-T has a built-in thermal shutdown feature that disables the device when it exceeds a certain temperature threshold. To handle this, ensure proper heat sinking, use a thermal interface material, and follow Allegro's thermal management guidelines to prevent overheating.
  • Allegro recommends using a 10 μF to 22 μF ceramic capacitor with a voltage rating of 10 V or higher for the VCC pin to filter out noise and ensure stable operation.
  • Calibration involves adjusting the device's internal registers to compensate for manufacturing variations. Allegro provides a calibration procedure in their application note AN296070, which involves measuring the device's output and adjusting the registers accordingly.
  • The maximum allowable voltage on the output pins is VCC + 0.3 V, but it's recommended to keep the output voltage within the specified range to ensure accurate and reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A1363LLUTR-2-T Overview

Use the download button to access the A1363LLUTR-2-T schematic symbol, PCB footprint, and 3D model.
