A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference layout in their application note AN296070.
Use a low-impedance current sense resistor (CSR) and ensure the CSR is placed close to the IC. Also, use a Kelvin connection to the CSR to minimize parasitic inductance.
The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pad on the bottom of the package.
A 10uF to 22uF ceramic capacitor is recommended for VCC bypassing, placed as close to the VCC pin as possible.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1391SEHLT-T Overview

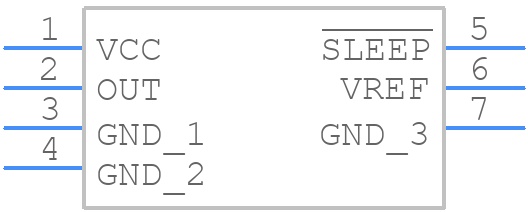

Use the download button to access the A1391SEHLT-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1391,
or try a keyword search, such as Linear Position Sensors
