A good PCB layout for the A1395SEHLT-T involves keeping the sense lines as short as possible, using a ground plane to reduce noise, and placing the device close to the motor to minimize wiring length and noise pickup.
The output signals from the A1395SEHLT-T are analog, so you'll need to use an ADC (analog-to-digital converter) in your microcontroller to convert the signals to digital values. You may also need to add filtering or signal conditioning to remove noise and improve signal quality.
The A1395SEHLT-T has an operating temperature range of -40°C to 150°C, but it's recommended to operate it within a range of -20°C to 125°C for optimal performance and reliability.
Yes, the A1395SEHLT-T can be used with a brushless DC motor, but you'll need to use an external controller or driver to commutate the motor. The A1395SEHLT-T provides the necessary position and velocity information for the controller to operate the motor.
Calibration involves adjusting the device's internal registers to optimize its performance for your specific motor and application. You'll need to consult the datasheet and application notes for specific calibration procedures, and may need to use specialized software or tools to perform the calibration.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1395SEHLT-T Overview

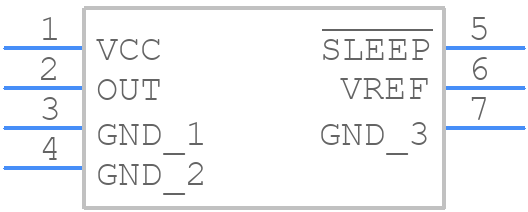

Use the download button to access the A1395SEHLT-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1395,
or try a keyword search, such as Linear Position Sensors
