A1454KLETR-2F-T - Allegro Microsystems

Description: 3 V Hall-Effect Linear Sensor with I?C Output

Download A1454KLETR-2F-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

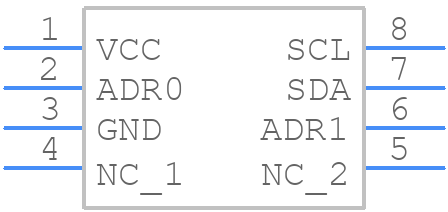

A1454KLETR-2F-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A1454KLETR-2F-T - Allegro Microsystems PCB footprint - Other - Other - Package LE, 8-Pin eTSSOP
click to zoom
3D Models
A1454KLETR-2F-T - Allegro Microsystems - 3D model - Other - Package LE, 8-Pin eTSSOP
click to zoom

A1454KLETR-2F-T Details

  • Manufacturer Part Number:

    A1454KLETR-2F-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    4.4 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    5 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Interface Type:

    I2C INTERFACE

  • Output Range:

    0.36V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    2.65 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

A1454KLETR-2F-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296050, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The A1454KLETR-2F-T has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • Allegro recommends using a low-pass filter with a cutoff frequency of around 100 kHz to 200 kHz to filter out high-frequency noise and ensure accurate current sensing. The specific filter configuration may vary depending on the application and noise environment.
  • Calibration involves adjusting the zero-current offset and sensitivity of the device. Allegro provides a calibration procedure in their datasheet, which involves applying a known current and adjusting the offset and sensitivity registers accordingly.
  • The maximum allowable voltage on the VCC pin is 5.5 V, as specified in the datasheet. Exceeding this voltage may damage the device.
