A1454KLETR-2N-T - Allegro Microsystems

Description: 3 V Hall-Effect Linear Sensor with I?C Output

Download A1454KLETR-2N-T Model

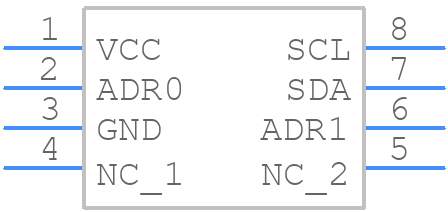

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A1454KLETR-2N-T - Allegro Microsystems PCB footprint - Other - Other - Package LE, 8-Pin eTSSOP
click to zoom
3D Models
A1454KLETR-2N-T - Allegro Microsystems  - 3D model - Other - Package LE, 8-Pin eTSSOP
click to zoom

A1454KLETR-2N-T Details

  • Manufacturer Part Number:

    A1454KLETR-2N-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    4.4 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    5 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Interface Type:

    I2C INTERFACE

  • Output Range:

    0.36V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    2.65 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Termination Type:

    SOLDER

A1454KLETR-2N-T Frequently Asked Questions (FAQs)

  • Allegro recommends a 4-layer PCB with a solid ground plane, and the IC should be placed near the center of the board to minimize noise and EMI. A low-ESR capacitor should be placed close to the VCC pin to filter out noise.
  • To ensure accurate current sensing, use a low-temperature-coefficient shunt resistor, keep the sensing lines as short as possible, and avoid routing them near high-current or high-voltage lines. Also, use a Kelvin connection to the shunt resistor to minimize errors.
  • Although the datasheet specifies a maximum VCC voltage of 5.5V, it's recommended to keep the voltage below 5V to ensure reliable operation and prevent damage to the IC.
  • The A1454KLETR-2N-T is rated for operation up to 150°C, but it's essential to consider the package's thermal resistance and the PCB's thermal design to ensure reliable operation at high temperatures.
  • To troubleshoot issues with the IC's output, check the input voltage, ensure proper PCB layout and routing, verify the shunt resistor value and connection, and use an oscilloscope to inspect the output signal for noise or distortion.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A1454KLETR-2N-T Overview

Use the download button to access the A1454KLETR-2N-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1454, or try a keyword search, such as Magnetic Field Sensors
