A1454KLETR-4F-T - Allegro Microsystems

Description: 3 V Hall-Effect Linear Sensor with I?C Output

Download A1454KLETR-4F-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

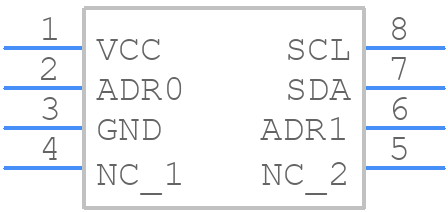

Symbol
A1454KLETR-4F-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A1454KLETR-4F-T - Allegro Microsystems PCB footprint - Other - Other - Package LE, 8-Pin eTSSOP
click to zoom
3D Models
A1454KLETR-4F-T - Allegro Microsystems - 3D model - Other - Package LE, 8-Pin eTSSOP
click to zoom

A1454KLETR-4F-T Details

  • Manufacturer Part Number:

    A1454KLETR-4F-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    4.4 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    5 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Interface Type:

    I2C INTERFACE

  • Output Range:

    0.36V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    2.65 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Termination Type:

    SOLDER

A1454KLETR-4F-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296050, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The A1454KLETR-4F-T has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
  • Allegro recommends a 10 μF to 22 μF ceramic capacitor with a voltage rating of 10 V or higher for the VCC filter capacitor. This helps to filter out noise and ensure stable operation.
  • The output pins can be configured for either analog or PWM output by connecting the appropriate pins to VCC or GND. Refer to the datasheet for specific pin configurations and output formats.
  • The A1454KLETR-4F-T can operate up to 120 kHz, but the maximum frequency depends on the specific application and output configuration. Refer to the datasheet for more information on frequency limitations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A1454KLETR-4F-T Overview

Use the download button to access the A1454KLETR-4F-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1454, or try a keyword search, such as Magnetic Field Sensors
