Allegro provides a recommended PCB layout in their application note AN296070, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
Handle the device by the package body only, avoiding touching the leads or electrical contacts. Store the devices in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD handling precautions to prevent damage.
The maximum allowable voltage on the VCC pin is 7 V. Exceeding this voltage can cause permanent damage to the device, including latch-up, overheating, or electrical overstress. Ensure that the power supply voltage is within the recommended range to prevent damage.
Start by verifying the power supply voltage, ensuring it is within the recommended range. Check the input signals, including the frequency and amplitude, to ensure they meet the device's specifications. Use an oscilloscope to monitor the output signals and verify they match the expected behavior. If issues persist, consult the datasheet and application notes or contact Allegro's technical support for further assistance.
The A1667LLTR-T is rated for operation up to 150°C. However, the device's performance and accuracy may degrade at higher temperatures. Ensure that the device is properly heatsinked and follow the recommended thermal management guidelines to prevent overheating. Consult the datasheet and application notes for more information on high-temperature operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1667LLTR-T Overview

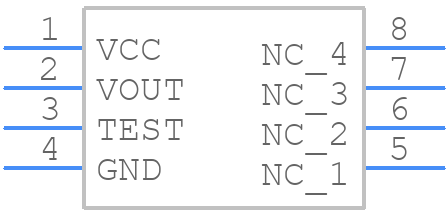

Use the download button to access the A1667LLTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1667,
or try a keyword search, such as Other Sensors/Transducers
