A18K1P-DA - NKK Switches

A18K1P-DA Details

• Manufacturer Part Number:

  A18K1P-DA

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  NKK Switches

• Actuator Finish:

  NICKEL

• Actuator Material:

  BRASS

• Actuator Type:

  ROCKER

• Body Breadth:

  5.842 mm

• Body Height:

  23.1902 mm

• Body Length or Diameter:

  9.8044 mm

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD

• Contact (DC) Max Power Rating R Load:

  0.4VA@28VDC

• Contact Function:

  (ON)-OFF-(ON)

• Contact Resistance:

  0.05 mΩ

• Contact Timing:

  MAKE-BEFORE-BREAK

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  BRASS

• End Contact Plating:

  GOLD

• Housing Material:

  GLASS FILLED POLYAMIDE

• Insulation Resistance:

  500000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Force-Max:

  2.73 N

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -10 °C

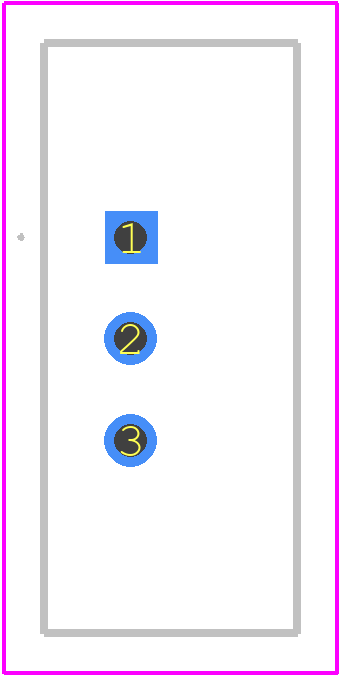

• PCB Hole Count:

  3

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  ROCKER SWITCH

• Terminal Finish:

  GOLD

• Terminal Length:

  0.122 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
