A2-12PA-2.54DSA(71) - Hirose

Description: Hirose A2 Series, 2.54mm Pitch 12 Way 1 Row Straight Pin Header, Through Hole, Solder Termination

Download A2-12PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A2-12PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

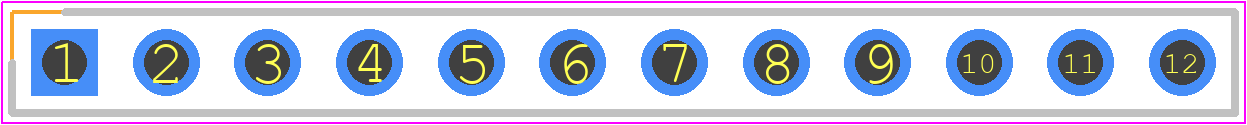

A2-12PA-2.54DSA(71) - Hirose PCB footprint - Header, Vertical - Header, Vertical - A2-12PA-2.54DSA(71)
click to zoom
3D Models
A2-12PA-2.54DSA(71) - Hirose - 3D model - Header, Vertical - A2-12PA-2.54DSA(71)
click to zoom

A2-12PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    A2-12PA-2.54DSA(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

A2-12PA-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the A2-12PA-2.54DSA(71) is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration.
  • The operating temperature range for this connector is -40°C to 105°C (-40°F to 221°F). However, the temperature rating may vary depending on the specific application and environment.
  • The A2-12PA-2.54DSA(71) has a mating cycle life of 500 cycles minimum.
  • The connector has a moisture resistance rating of IP67, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes.
