A2-16PA-2.54DS(71) - Hirose

Description: Hirose A2 Series, 2.54mm Pitch 16 Way 1 Row Right Angle Pin Header, Through Hole, Solder Termination

Download A2-16PA-2.54DS(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A2-16PA-2.54DS(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

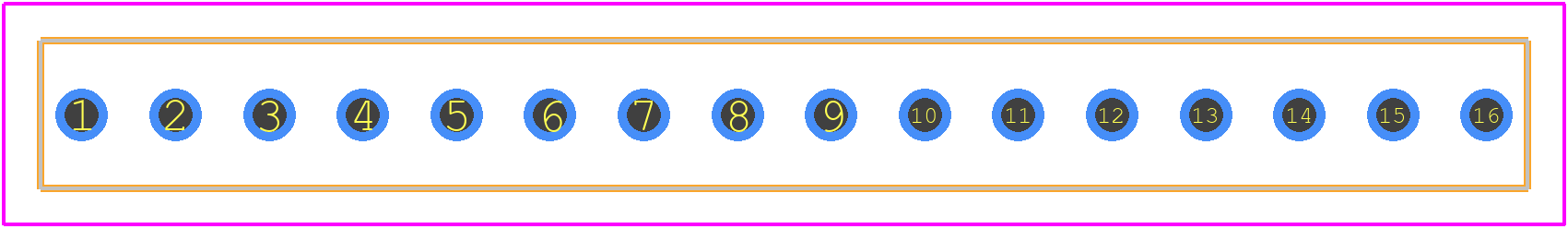

A2-16PA-2.54DS(71) - Hirose PCB footprint - Other - Other - A2-16PA-2.54DS(71)-1
click to zoom
3D Models
A2-16PA-2.54DS(71) - Hirose - 3D model - Other - A2-16PA-2.54DS(71)-1
click to zoom

A2-16PA-2.54DS(71) Details

  • Manufacturer Part Number:

    A2-16PA-2.54DS(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A2-16PA-2.54DS(71) Overview

Use the download button to access the A2-16PA-2.54DS(71) schematic symbol, PCB footprint, and 3D model.
