A20-108-661-310 - EDAC

Description: Modular Connectors / Ethernet Connectors 1X1 LED YLW/GRN R/A SHIELDED

Download A20-108-661-310 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

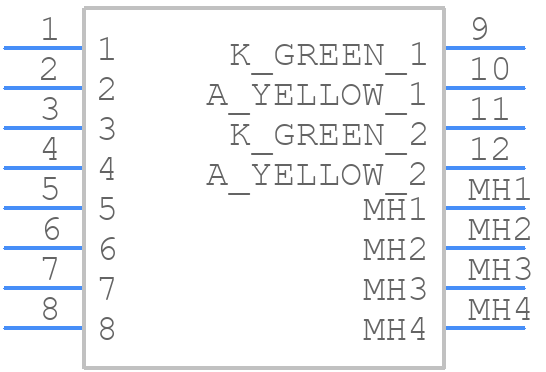

A20-108-661-310 - EDAC - PCB symbol
click to zoom
PCB Footprints

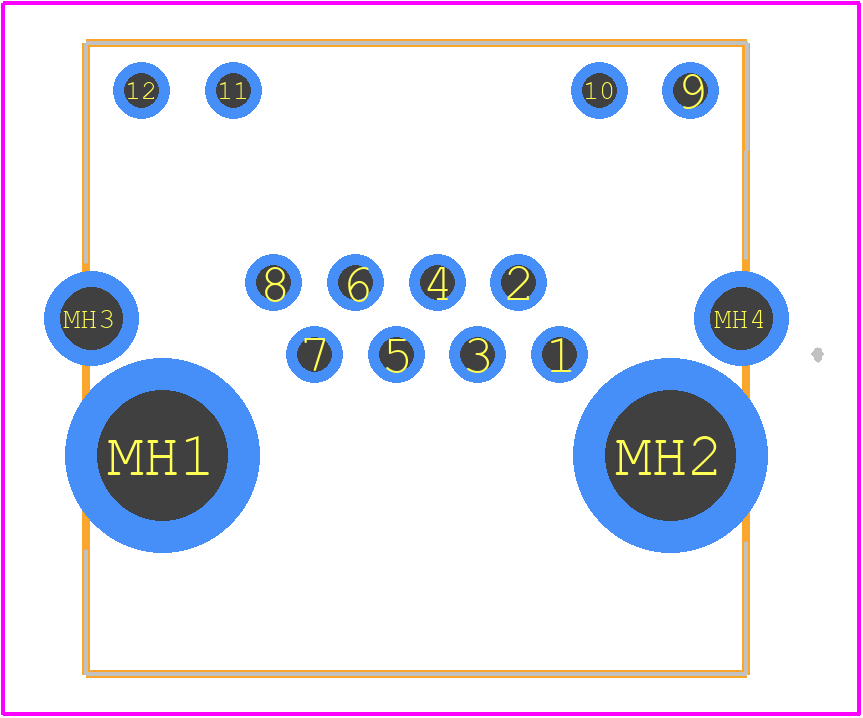

A20-108-661-310 - EDAC PCB footprint - Other - Other - A20-108-661-310-1
click to zoom
3D Models
A20-108-661-310 - EDAC - 3D model - Other - A20-108-661-310-1
click to zoom

A20-108-661-310 Details

  • Manufacturer Part Number:

    A20-108-661-310

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    EDAC Inc

  • YTEOL:

    0

  • Additional Feature:

    ROHS COMPLAINT

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    TELCOM, MODULAR

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

A20-108-661-310 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks on the A20-108-661-310 connector.
  • Yes, the A20-108-661-310 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial machinery, transportation, and aerospace.
  • Yes, the A20-108-661-310 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The A20-108-661-310 connector has a mating cycle life of 500-1000 cycles, depending on the application and usage.
  • Yes, the A20-108-661-310 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A20-108-661-310 Overview

Use the download button to access the A20-108-661-310 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A20-1, or try a keyword search, such as Telecom and Datacom Connectors
